THIS OFFERING SACRIFICES NOTHING
The Dark Lord of Singletrack isn’t a moniker we plastered on just any random bike. The Offering LS earned it. Like a versatile pocketknife, this 141mm 29” trail platform has proven itself more capable than any jumble of geo numbers can describe. Its capabilities bridge conventional genres to bang on a broader drum. Paired with a 150mm fork, the Offering is set to cover all trail types over the whole damn mountain.
CLIMB. DESCEND. SMILE. REPEAT.
A proper pocketknife covers all the slicing tasks you imagine, and the unexpected ones in between. Our Offering platform aims to do the same. The bike is stiff and responsive, pairing the smooth pedaling platform of our Following with some added padding so you can release the brakes and let gravity take over.
To polish this shiny knife, Evil will offer lifetime bearing warranty for Offering LS frames. Original owners can register their bikes on the Evil website. See our warranty site for more details to keep those pivots silky smooth.
The tail of this 141mm bike will ramp up fast for a lively position on the “spry-ride to bulldozer” continuum. You can certainly line up at a local enduro with the Offering, and we shaped it to leap ruts and boost over roots beneath creative riders who prefer the bonus line to the shortest one.
All three Offering LS builds come with top-shelf RockShox suspension that’s tuned to provide comfort and support right where you want it. Bolt on our carbon Loopholes or the Industry Nine wheelset, the gold-standard Bike Yoke dropper, a powerful set of 4-piston brakes, and this ride is dressed for any party you drop in to.
THE DEVIL IS IN THE DETAILS

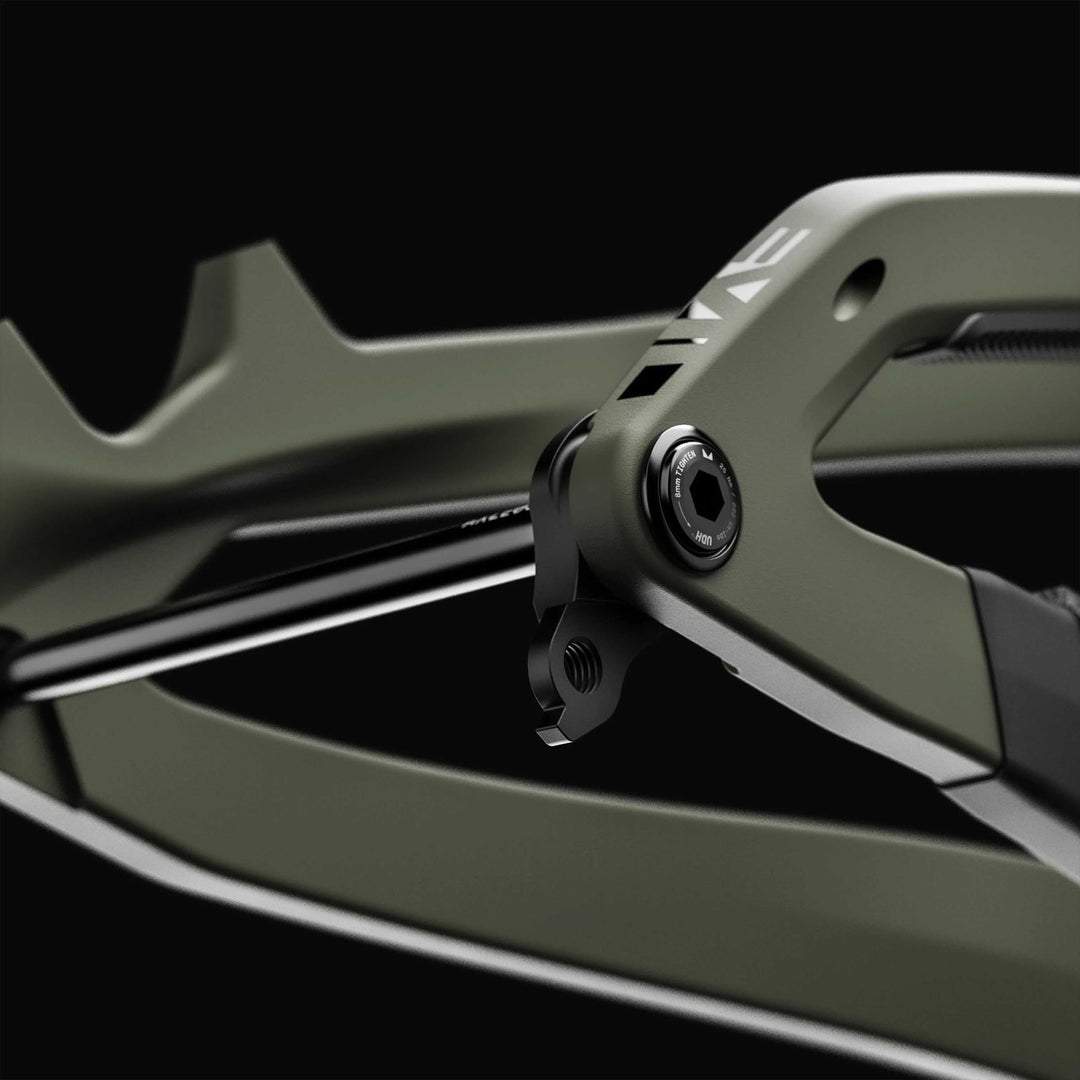

UDH COMPATIBLE
Slap it sideways against a stump? All Lightly Salted models feature UDH hangers, easily replaced at your local shop.

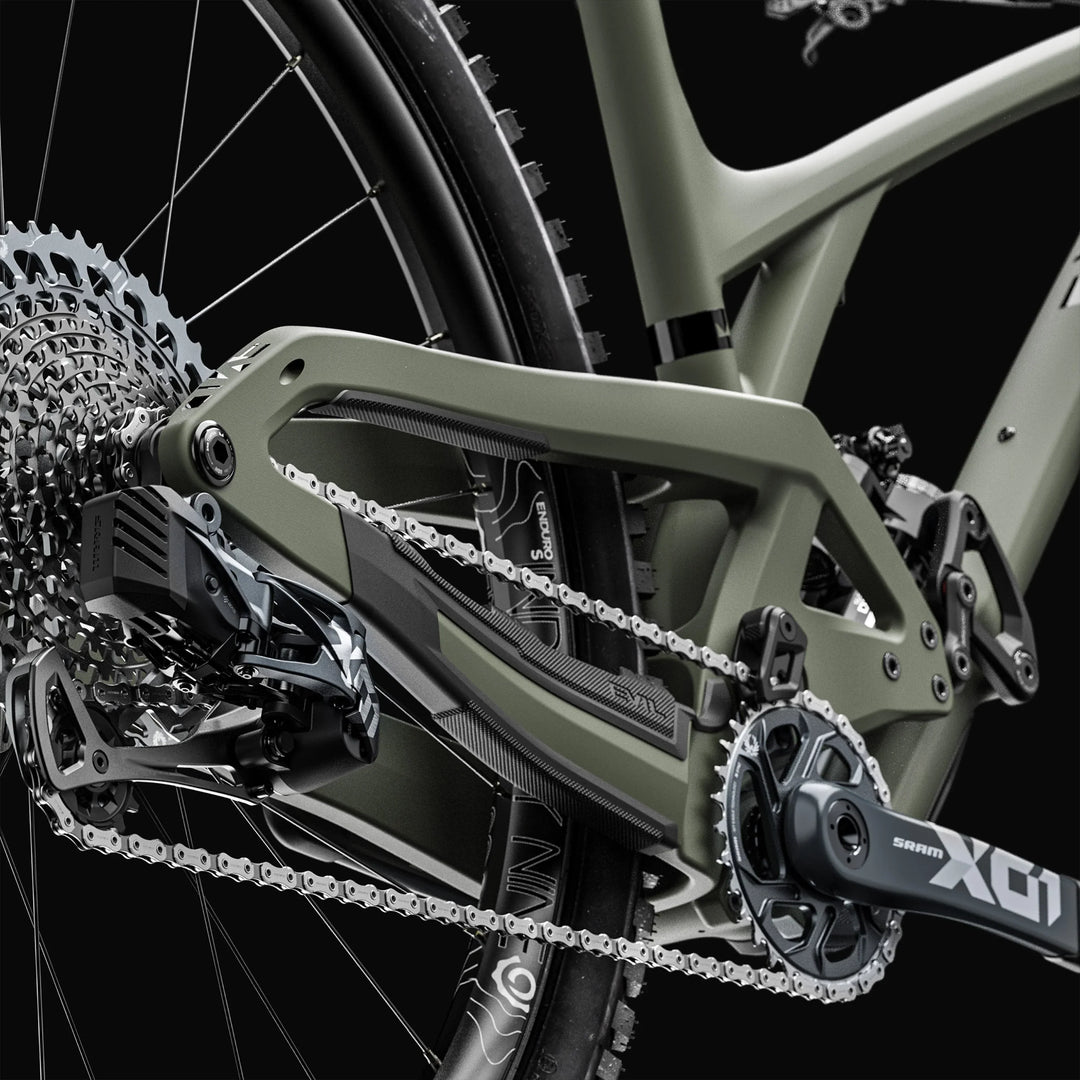

WHEELIE SHORT CHAINSTAYS
Make Bikes Shred Again. Short 430mm chain stays mean wheelies for days and manuals for months.

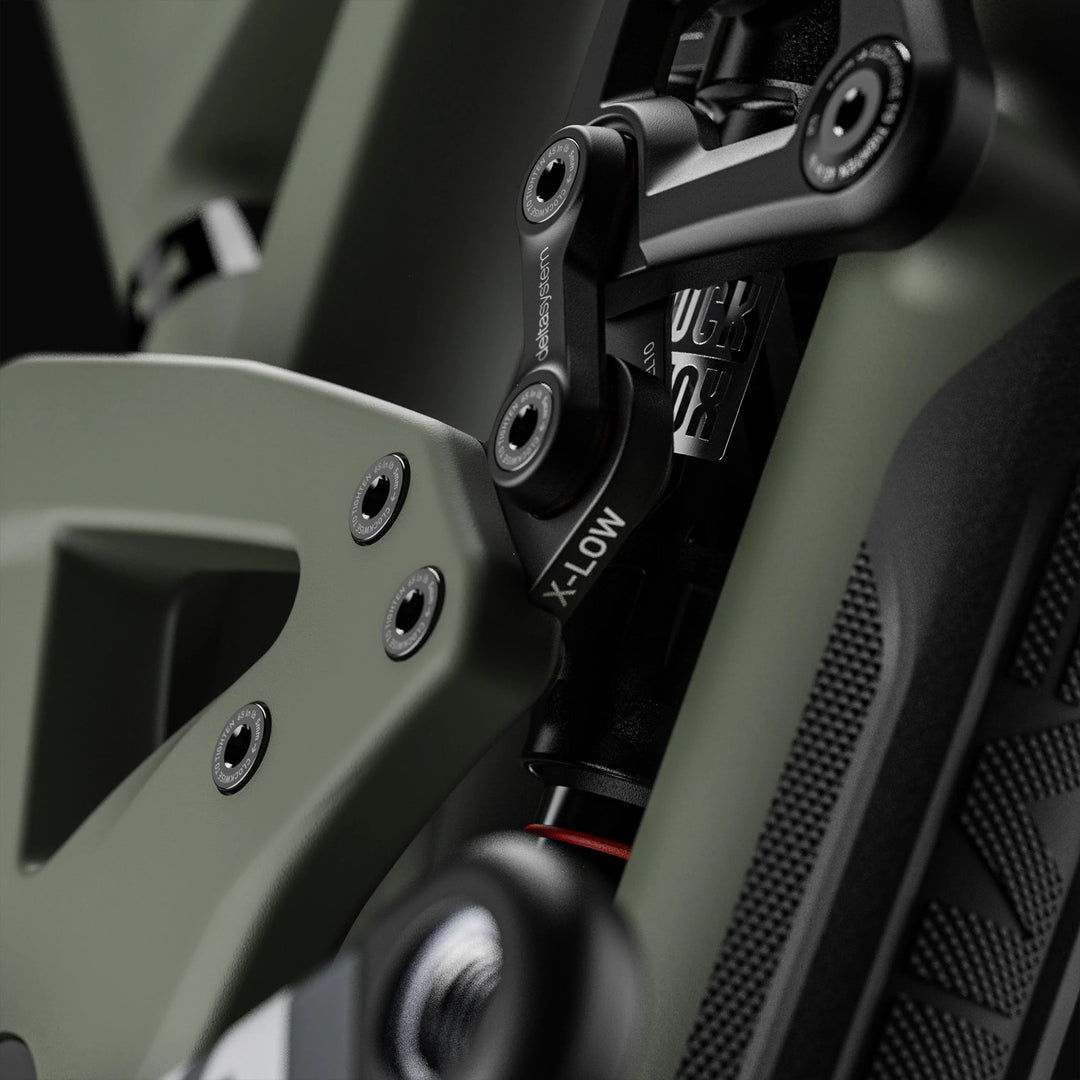

ADJUSTABLE GEOMETRY
Flip yo' Chips! Choose LOW mode for everyday trail-slaying geometry, or flip to XLOW mode for a gravity-fed, park eating ride.
INTEGRATED SAG METER
Dial in sag on your shred happy sled with this quick meter that hits right at the 30% mark.

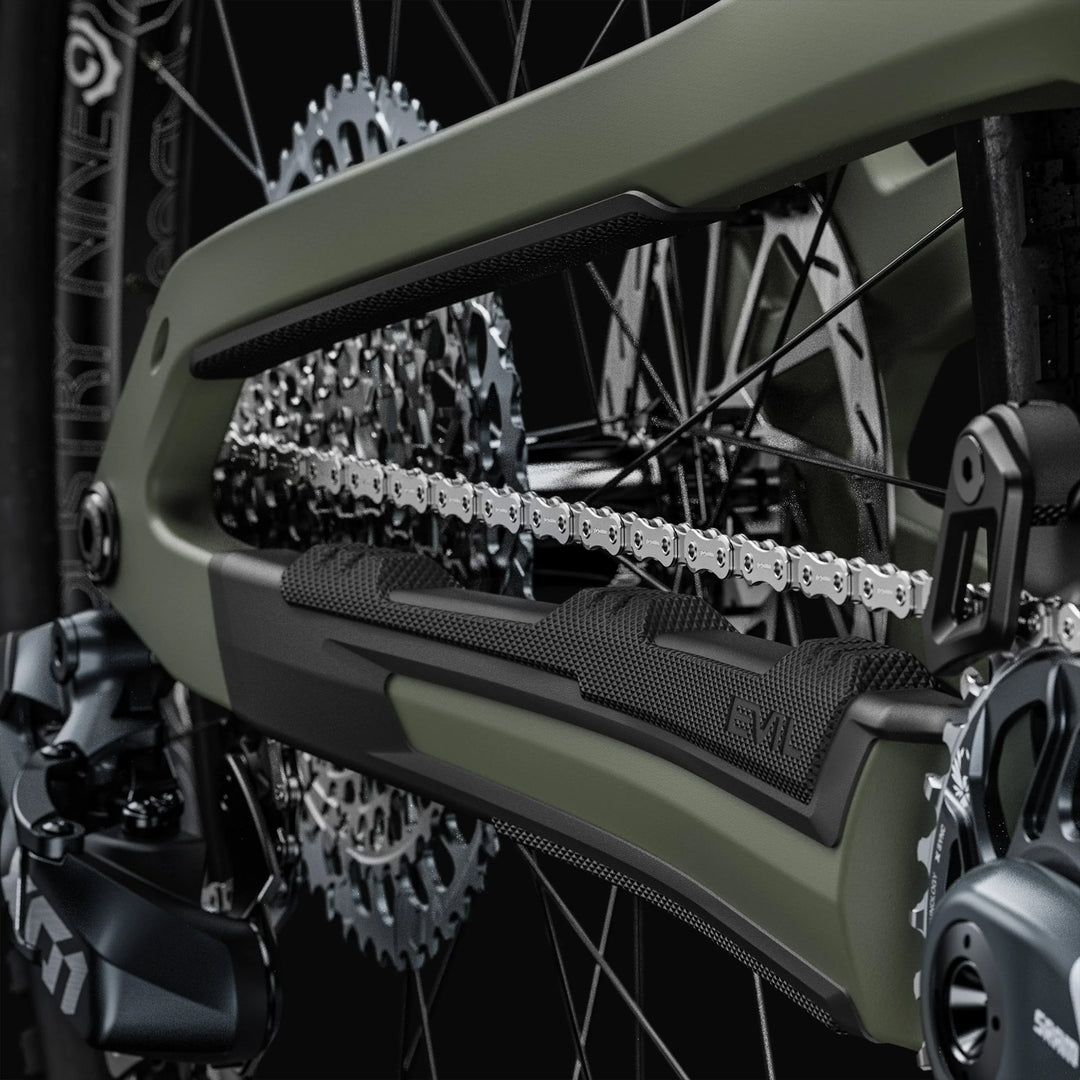

CALM AND COLLECTED
A rubber sound canceling chainstay protector and an integrated chain guide keep the drivetrain silent and deadly.

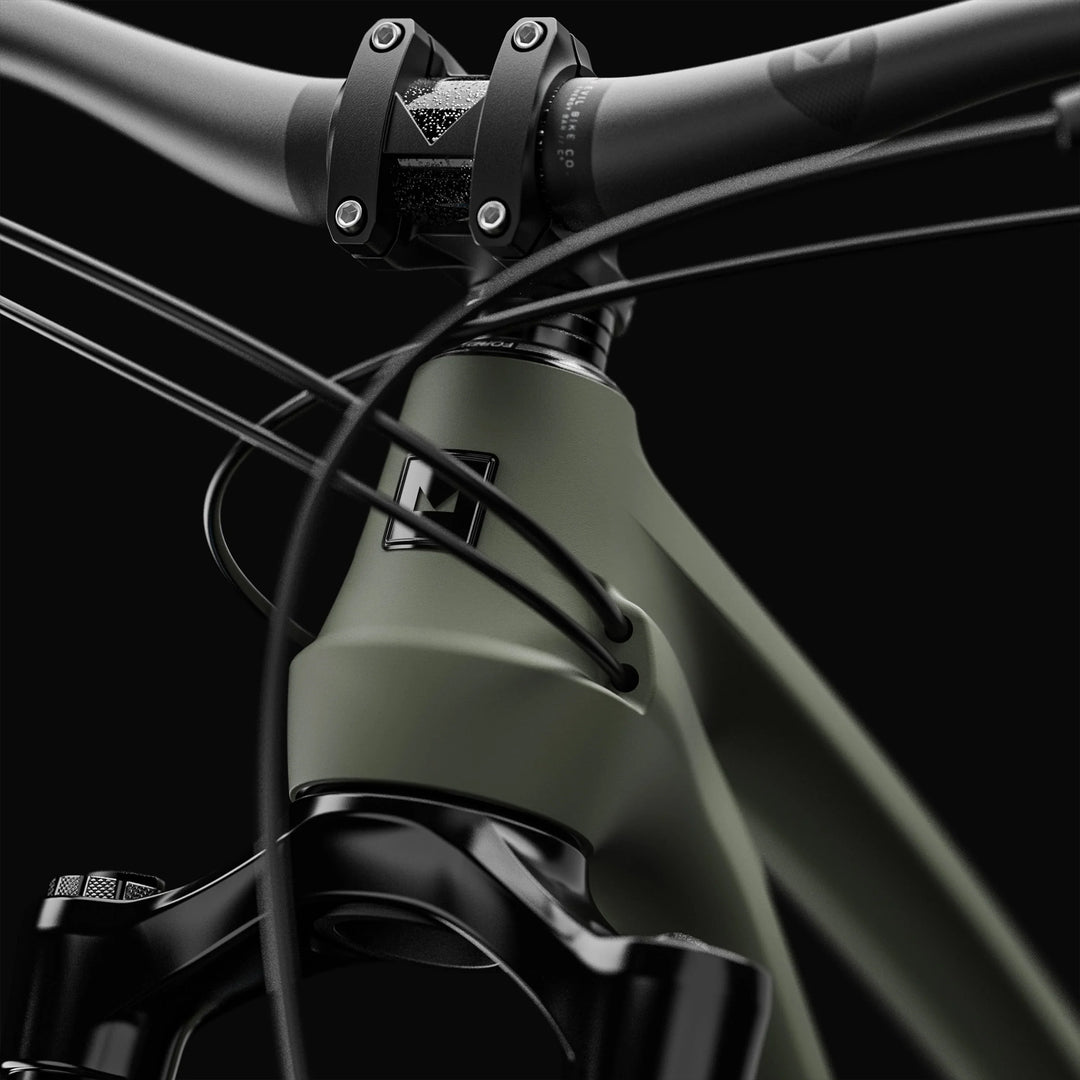

INTERNAL CABLE ROUTING
Ditch those archaic zip ties. Fully guided internal routing for clean looks, easy installation and worry-free maintenance.
| GEOMETRY | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| A - Head Tube Angle - LOW | 66.4° | 66.4° | 66.4° | 66.4° |
| A - Head Tube Angle – X-LOW | 65.8° | 65.8° | 65.8° | 65.8° |
| B - Seat Tube Angle - LOW | 77° | 77° | 77° | 77° |
| B - Seat Tube Angle – X-LOW | 76° | 76° | 76° | 76° |
| C - Virtual Top Tube Length - LOW | 594mm | 23.38" | 617mm | 24.28" | 639mm | 25.15" | 661mm | 26.03" |
| C - Virtual Top Tube Length – X-LOW | 596mm | 23.46" | 619mm | 24.37" | 641mm | 25.24" | 663mm | 26.10" |
| D - Seat Tube Length | 380mm | 14.96" | 431mm | 16.96" | 460mm | 18.11" | 495mm | 19.48" |
| E - Bottom Bracket Height - LOW | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" |
| E - Bottom Bracket Height – X-LOW | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" |
| F - Bottom Bracket Drop - LOW | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" |
| F - Bottom Bracket Drop – X-LOW | 34mm | 1.34" | 334mm | 1.34" | 34mm | 1.34" | 34mm | 1.34" |
| G - Head Tube Length | 95mm | 3.74" | 105mm | 4.13" | 115mm | 4.52" | 125mm | 4.92" |
| H - Chain Stay Length - LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| H - Chain Stay Length – X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
| I - Wheel Base - LOW | 1180mm | 46.45" | 1205mm | 47.44" | 1231mm | 48.46" | 1256mm | 49.44" |
| I - Wheel Base – X-LOW | 1182mm | 46.54" | 1207mm | 47.52" | 1233mm | 48.54" | 1258mm | 49.53" |
| J - Axle to Crown | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" |
| K - Offset | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" |
| L - Front to Center - LOW | 750mm | 29.52" | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| L - Front to Center – X-LOW | 750mm | 29.52 | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| M - Trail - LOW | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" |
| M -Trail – X-LOW | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" |
| N - Stack - LOW | 613mm | 24.13" | 622mm | 24.5" | 632mm | 24.86" | 641mm | 25.22" |
| N - Stack – X-LOW | 618mm | 24.33" | 627mm | 24.69" | 637mm | 25.08" | 646mm | 25.43" |
| O - Reach - LOW | 448mm | 17.36" | 469mm | 18.47" | 491mm | 19.32" | 512mm | 20.17" |
| O - Reach – X-LOW | 442mm | 17.40" | 463mm | 18.23" | 485mm | 19.09" | 506mm | 19.92" |
| P - Standover - LOW | 672mm | 26.45" | 684mm | 26.92" | 695mm | 27.38" | 706mm | 27.8" |
| P - Standover – X-LOW | 664mm | 26.14" | 676mm | 26.61" | 687mm | 27.05" | 698mm | 27.48" |
| COMPONENT SIZING | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length | 35mm | 35mm | 35mm | 35mm |
| Stem Rise | 0° | 0° | 0° | 0° |
| Headset Spacers | 15mm | 15mm | 15mm | 15mm |
| Handlebar Rise | 35mm | 35mm | 35mm | 35mm |
| Handlebar Width | 780mm | 800mm | 800mmm | 810mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Frame Sizing | 160-172cm | 168-182cm | 178-192cm | 188cm+ |
| Available Sizes | Small, Medium, Large, XLarge |
| Available Colors | Absinthe, Reigning Blood |
| Wheel Travel | 141mm |
| Rear Shock | Rockshox Super Deluxe Ultimate, Trunnion 185x55, 0L1 LNLC HB 38TS C1 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 561mm ( Rockshox Lyrik Ultimate 150mm ) |
| Fork Offset | 42mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 ZS44/28.6/H8 ZS62/40 |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29" x 2.6" (Varies By Brand) |
| Bottom Bracket Shell | 73mm Threaded |
| Chainline | 55mm-56.5mm |
| Chainguide Mount | Evil Proprietary (Upper), ISCG05 (Lower) |
| Maximum Chainring Size | 36T Single Ring |
| Minimum Chainring Size | 30T |
| Rear Derailleur Hanger | SRAM Universal Derailleur Hanger |
| Rear Wheel Spacing | 157mm x 12mm |
| Rear Brake Mount Type | Post Mount 180mm |
| Maximum Rear Rotor Size | 203mm |
Shock Setup Notes:
• 30% Sag provides a smoother ride
| RIDER WEIGHT | PRESSURE FOR ROCKSHOX SUPER DELUXE ULT WITH 30% SAG |
|---|---|
| < 100lb | < 110 psi |
| 100 – 120lb | 110 – 130 psi |
| 120 – 140lb | 130 – 150 psi |
| 140 – 160lb | 150 – 170 psi |
| 160 – 180lb | 170 – 190 psi |
| 180 – 200lb | 190 – 210 psi |
| 200 – 220lb | 210 – 230 psi |
| 220 – 240lb | 230 – 250 psi |
| 240 – 260lb | 250 – 270 psi |
| > 260lb | > 270 psi |
FRAME
Where can I find an exploded view diagram of my bike? You've come to the right place! Here
What is the warranty on my bike? Limited Lifetime Warranty information can be found here: https://www.evil-bikes.com/pages/warranty-policy
How do I adjust my Flip Chips? Remove upper and lower bone link bolts on each side, then remove the 3 flip chip bolts from each side. Flip your Chips 180deg on a horizontal axis. The desired position is noted on the upward facet. The Flip Chip position will be visible when sitting on the bike and should read Low/X-Low depending on model.
What is the paint code on my bike? Reigning Blood - Pantone 4102C Matte or Absinthe - Pantone 418 C
DRIVETRAIN
Which bottom bracket (BB) standard does my bike utilize? It utilizes a threaded BSA 73mm bottom bracket. We recommend pairing your BB & crankset brands, to assure compatibility.
My chainring is slightly off-center in the upper guide.- If the chainring is too far inboard, try adding one drive side BB spacer.
- If the chainring is too far outboard, try removing one drive side BB spacer and placing that on the non-drive side.
- If neither of these solutions address the issue, your cranks, or chainring may not accommodate the appropriate chainline.
What crankset spacing does my bike require? It requires a SuperBoost crankset w/ 56.5 mm chain line. We spec a 3mm offset Chainring with SuperBoost+ width Cranksets for most cranksets. Boost cranksets cannot be modified to work with this frame.
What are my allowable chainring sizes? Round: 30-36t / Oval: 32-34t
Does my bike accommodate a 2x drivetrain? No. It has an integrated 1x upper chain guide.
Will my bike accept an aftermarket chain guide? Yes. Custom ISCG05 tabs to accommodate aftermarket lower chain guides & bash guards.
What derailleur hanger does my bike use? SRAM UDH (Universal Derailleur Hanger).
WHEELS
What is my bike's rear axle spacing? SuperBoost (12x157mm) rear spacing.
What size wheels & tires does my bike fit? It's designed to accommodate 29" wheels with (up to) 2.6" tires. Front tire clearance is dependent on your fork manufacturer's specifications.
SEAT/POST
What seat post diameter does my bike utilize? A 30.9mm seatpost.
What seat post clamp diameter does my bike utilize? 34.9mm clamp
What is the longest dropper post I can run?
Please email info@evil-bikes.com with the following information:
- Your BB center to seat rail center measurement, in the pedaling position.
- Crank length- should be noted on the medial (center-facing) side of your drive-side crank.
- Which dropper post(s) you are looking at.
Our service robots will promptly get back to you with options. If you prefer to do the math yourself you can find the seat tube length on row "D" of the Offering LS geometry chart on our website. Maximum insertion depths are as follows:
| Small | Medium | Large | X-Large |
|---|---|---|---|
| 210mm | 250mm | 260mm | 285mm |
BRAKE
What type of brake mount does my bike have? It utilizes a 180mm Post Mount rear. Front is dependent on your fork's make & model. Please see your fork manufacturer's website for exact specifications.
What is my maximum rear brake rotor size? It accepts up to a 203mm rotor.
HEADTUBE
What type of headset does my bike require? It requires a (Zero Stack) ZS44, ZS62 headset. Few alternatives exist. Consult info@evil-bikes.com if you have a headset that you are unsure about.
What type of steerer tube does my bike require? It requires a tapered steerer (1 1/8" - 1 1/2").
What is my frame's minimum steerer tube length? It's is designed around a 42mm fork offset.
SUSPENSION
What fork offset should I run? With zero spacers, assuming a stem stack height of 40mm, your Following LS requires a steerer length of no less than:
| Small | Medium | Large | X-Large |
|---|---|---|---|
| 145mm | 155mm | 165mm | 175mm |
Fork manufacturers recommend no more than 30mm of spacers between stem and the upper race. The provided measurements account for 0mm additional stack height (no spacers between stem & dust cap), with a 40mm stack height stem.
How much fork travel can my bike accommodate? The Offering LS is recommended to be paired with a 150mm-160mm travel fork.
How much travel (suspension) does my bike have? The Offering LS has 141mm of rear wheel travel. Recommended fork travel (front) is between 150 and 160mm.
What size shock does my frame utilize? The Offering LS utilizes a Trunnion-mounted upper and requires 8x20mm lower shock mount hardware.
What size shock mount hardware does my bike require? The Offering LS utilizes a Trunnion-mounted upper and requires 8x20mm lower shock mount hardware.
What approved shock options are available?
| Rockshox Superdeluxe Ultimate | RS SDLX ULT RCT185X55 DB0 LLC 380TS B2, SHAFT END: TRUNNION |BODY END: 8X20 |
|---|---|
| Fox Float X2 | 2021, FLOAT X2, F-S, K, 2pos-Adj, Trunnion, Evil Bikes, Offering, 185, 55, 0.3 Spacer x1CL001, JCR010 |
| Fox DPX2 | 2021, FLOAT DPX2, F-S, K,3pos-Adj, Trunnion, Evol LV, Evil Bikes, MY20 Offering, 18555, 0.2 Spacer, CM, DRL, ReziA F M, Neutral Logo |
| Push ElevenSix | Contact Push for custom tune |
It is important to note that each EVIL frame requires a specific damper tune. Often times, a standard off-the-shelf tune will not capitalize on the inherent qualities of the DELTA linkage.
Various other options may exist. If you are interested in a damper that is not specified on this list, please consult our friendly customer service team at info@evil-bikes.com.
