Evil Bikes - Faction 2

The Hard Tail Work Horse is Back

Forged from tubes of Reynolds 520 steel the Faction II chews through your local dirt jumps, streets, berms, and bowls like eating a late night burrito from 7-11. Two-Six ain't dead, it's been resurrected on this small-wheeled-death-machine. Experience the poppertunity at every slope of a bank, shaped dirt lip or vert wall. The Black Rust raw finish and steel tubing is ready to use and abuse while gaining the inevitable character-building scars from tricks tried, gaps sent and bad decisions.

Evil Bikes - Faction 2

Build Your Faction 2

€599.99 EUR

The hard tail workhorse that's ready to shred the trail, park or dirt jumps has been resurrected with a tapered head tube, increased head tube and stack height, horizontal dropouts and ready for BMX style mid bottom bracket. Be the shadows in the streets and style on the dirt with the all new Faction 2.

The Devil is
in the details

Evil Bikes - Faction 2
Evil Bikes Tech - Bolt On Axle
Feature 01

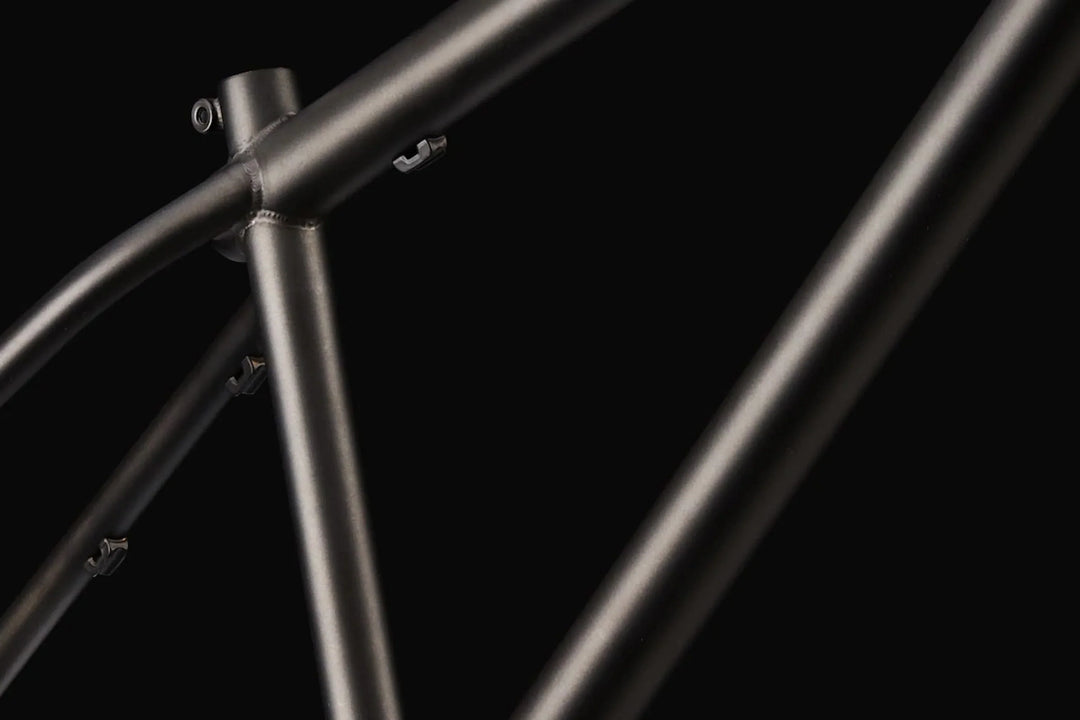

Steel Is Real

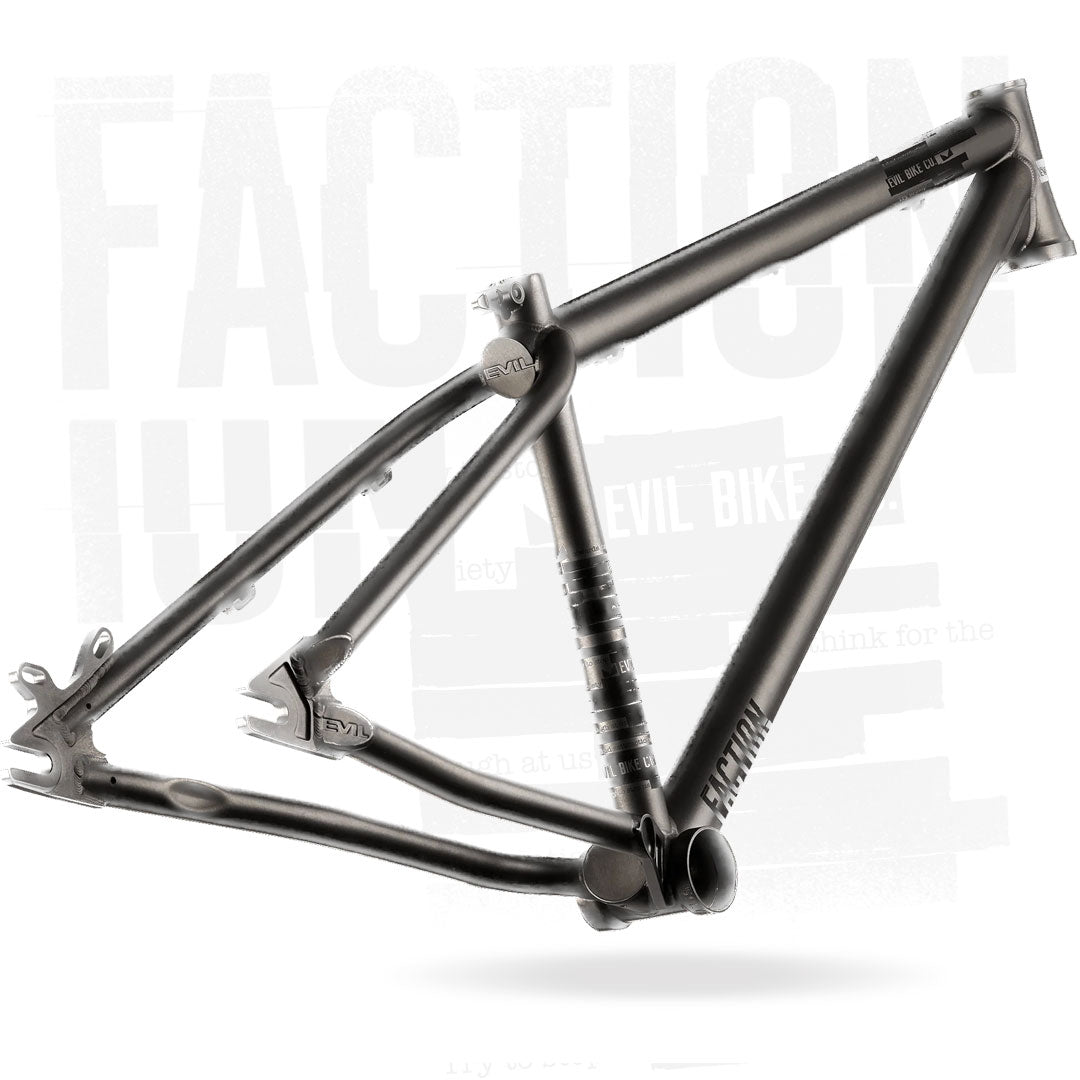

The Faction 2 frame is is constructed out of Reynolds 520 steel tubing to provide strength and durability.

Evil Bikes Tech - ISCG05 Mounts
Feature 02
Tapered Head Tube

A new taller tapered head tube to fit modern dirtjump forks and give you that boost you were looking for.

Evil Bikes Tech - Delta System
Feature 03
BMX-Style Horizontal Dropouts

BMX style horizontal dropouts and mid BB bottom bracket.

Geo
Frame Geo Small Medium Large
A - Head Angle 69.5° 69.5° 69.5°
B - Seat Tube Angle 71.5° 71.5° 71.5°
C - Virtual Top Tube Length 580mm | 22.8" 590mm | 23.2" 605mm | 23.8"
D - Seat Tube Length 320mm | 12.6" 320mm | 12.6" 320mm | 12.6"
E - Bottom Bracket Height 323mm | 12.7" 323mm | 12.7" 323mm | 12.7"
F - Head Tube Length 115mm | 4.5" 115mm | 4.5" 115mm | 4.5"
G - Chain Stay Length Min 381mm | 15.0" 381mm | 15.0" 381mm | 15.0"
G - Chain Stay Length Max 397mm | 15.6" 397mm | 15.6" 397mm | 15.6"
H - Wheel Base Min 1016mm | 40.0" 1026mm | 40.4" 1041mm | 41.0"
H - Wheel Base Max 1032mm | 40.6" 1042mm | 41.0" 1057mm | 41.6"
J - Axle to Crown 482mm 482mm 482mm
K - Offset 40mm 40mm 40mm
Stack 521mm | 20.5" 521mm | 20.5" 521mm | 20.5"
Reach 389mm | 15.3" 399mm | 15.7" 414mm | 16.3"
Sizing 5'0"-5'7" 5'7"-6'1" 6'1"-6'4"
Fit
Component Sizing Small Medium Large
Stem Length 35-50mm 35-50mm 35-50mm
Stem Rise 0°-5° 0°-5° 0°-5°
Handlebar Rise 35mm-50mm 35mm-50mm 35mm-50mm
Handlebar Width 710mm-800mm 710mm-800mm 710mm-800mm
Crank Length 170mm 170mm 170mm
Sizing 5'0"-5'7" 5'7"-6'1" 6'1"-6'4"
Specs
Available Sizes
Small, Medium, Large
Frame
Reynolds 520 Steel in Black Rust
Fork Axle to Crown Length
482mm
Fork Offset
40mm
Headtube
Tapered 1 1/8" - 1 1/2"
Headset
FSA NO.42/ACB, Upper 42mm, Lower 52mm
Seatpost Diameter
27.2mm
Rear Wheel Diameter
26"
Maximum Rear Tire Size
26" x 2.3" (Varies by Brand)
Bottom Bracket Shell
Mid BB
Chainline
50mm
Chainguide Mount
N/A
Maximum Chainring Size
28T Single Ring
Rear Wheel Spacing
135mm x 10mm
Brake Mount Type
IS Standard
Maximum Rear Rotor Size
160mm
Faq
What size Spindle does the Faction use when running BMX style cranks?

The Faction works best with 153mm/6″spindles.

What size is the seat post?

The Faction 2 uses a 27.2mm seat post and has an integrated seat clamp.

What is the warranty on the Faction 2?

3 Year limited warranty

What type of headset does the Faction 2 use?

The Faction uses a FSA NO.42/ACB, Upper 42mm, Lower 52mm headset.
