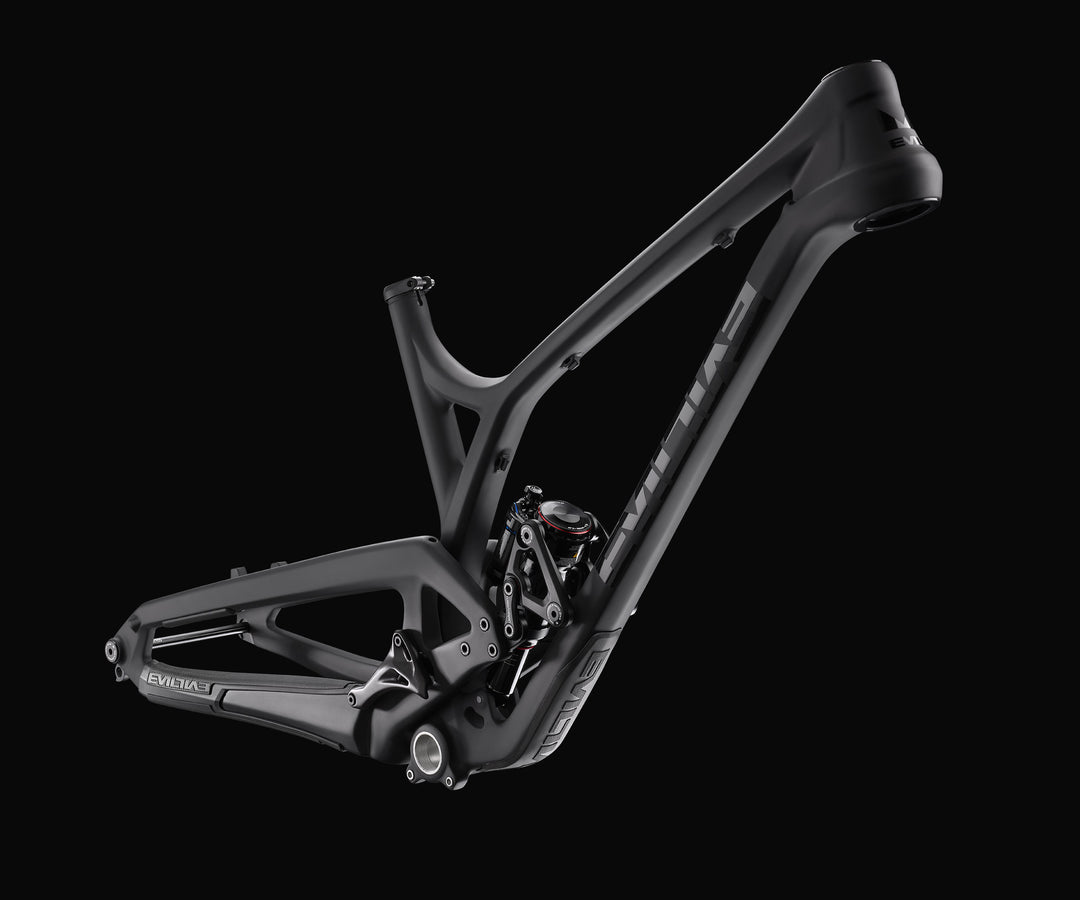

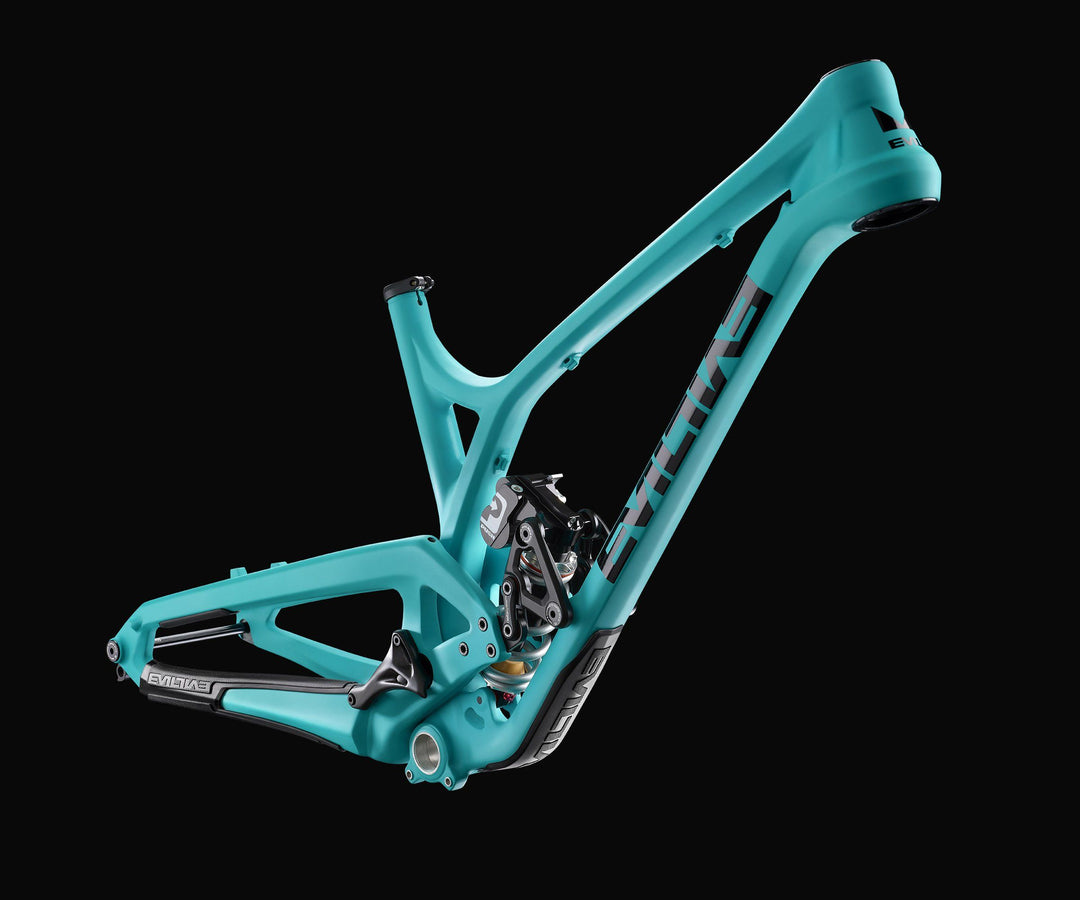

Offering V1

Offering V1

29" WHEELS / 141 MM REAR TRAVEL
The Offering V1 is the 141mm travel 29er that has a taste for adventure and everything you need to crush epic all-day trail missions, slash berms, and send every jump line you can find.
€3,499.99 €1,999.99 Save €1,500.00
/
Tax included.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Size
S (Low, X-Low)
M (Low, X-Low)
L (Low, X-Low)
XL (Low, X-Low)
Top Tube Length
588
611
633
655
Head Tube Angle
66.2°, 65.6°
66.2°, 65.6°
66.2°, 65.6°
66.2°, 65.6°
Head Tube Length
104
114
124
134
Seat Tube Angle
76°, 75°
76°, 75°
76°, 75°
76°, 75°
Seat Tube Length
381
432
470
508
Bottom Bracket Height
346, 338
346, 338
346, 338
346, 338
Chainstay Length
430, 432
430, 432
430, 432
430, 432
Wheelbase
1180, 1184
1205, 1209
1229, 1233
1253, 1257
Standover
699
708
718
733
Reach
437
457
477
497
Stack
615
623
633
643
Additional Info All measurements are provided in mm unless otherwise noted
51mm fork offset, 551mm fork axle to crown
Measurements with 140mm travel fork
Wheel Trave 140mm
Rear Shock Rockshox Super Deluxe RCT Debonair, 185x55, DB LLC 380
Shock Hardware Trunnion Upper, 20x8mm lower
Fork Axle to Crown 551mm
Fork Offset 51mm
Headtube Tapered 1 1/8" - 1 1/2"
Headset Upper ZS/44 Lower ZS/62mm Tapered OD
Seatpost Diameter 30.9mm
Seatclamp Diameter 34.9mm
Rear Wheel Diameter 29"
Maximum Rear Tire Size 2.4"
Bottom Bracket Shell 73mm Threaded
Chainline 51mm
Chainguide Mount ISCG05 Lower
Maximum Chainring Size Round: 36T / Oval: 34T
Minimum Chainring Size Round: 30T / Oval: 32T
Rear Wheel Spacing Boost 148mm x 12mm
Front Derailleur Single Ring Only
Rear Brake Mount Type Post Mount 180mm
Maximum Rear Rotor Size 203mm
