DJ / 26" WHEELS

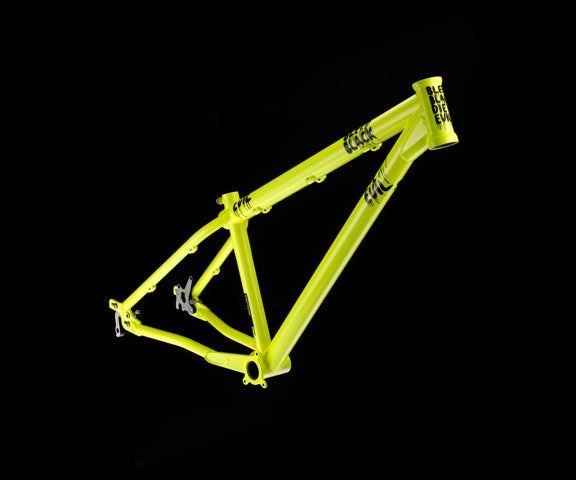

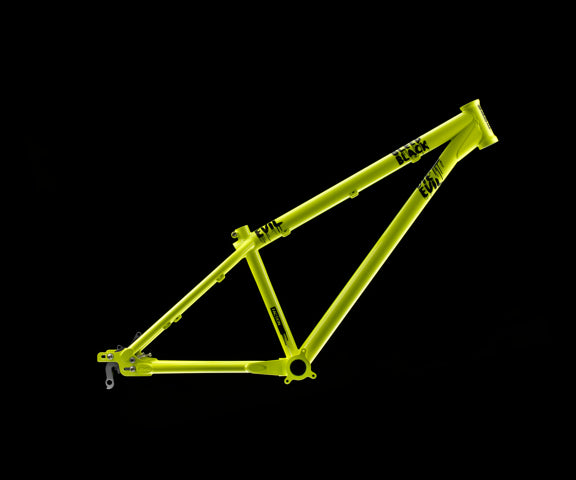

A handful of original Faction frames have been unearthed! This legendary dirt jump power horse is hand made using trustworthy and high quality Reynolds 520 steel tubing for great riding feel and durability and comes with old school graphics. Get one of these frames at clearout prices before they run out! Straight 1 1/8" steerer tube compatible only.
Regular price €599.99 Sale price€299.99 Save €300.00
/
Tax included.

  • Low stock - 2 items left
  • Inventory on the way

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Geometry S M L
A HA  69.5˚ 69.5˚ 69.5˚
B ST Angle  71.5˚ 71.5˚ 71.5˚
C Virtual TT Length 580mm | 22.8” 590mm | 23.2” 605mm | 23.8”
D ST Length 320mm | 12.6” 320mm | 12.6” 320mm | 12.6”
E BB Height  (2.4" Tire) 319mm | 12.5” 319mm | 12.5” 319mm | 12.5”
F HT Length 100mm | 3.9” 100mm | 3.9” 100mm | 3.9”
G CS Length Min 381mm | 15.0” 381mm | 15.0” 381mm | 15.0”
    CS Length Max 397mm | 15.6” 397mm | 15.6” 397mm | 15.6”
H WB Min 1016mm | 40.0″ 1026mm | 40.4″ 1041mm | 41.0″
    WB Max 1032mm | 40.6″ 1042mm | 41.0″ 1057mm | 41.6″
J Axle to Crown 471mm 471mm 471mm
K Offset 39mm 39mm 39mm
Stack 521mm | 20.5″ 521mm | 20.5″ 521mm | 20.5″
Reach 399mm | 15.7″ 409mm | 16.1″ 424mm | 16.7″
Wheel Size 26"
Frame Material  Reynols 520 Steel With Black ED Treatment
Head Tube Diameter Integrated 1-1/8" Campagnolo Style with FSA Impact 1-1/8" (45° x 45°) Headset
Bottom Bracket 73mm Threaded (Use 153mm/6" Spindle for BMX Cranks)
Rear Dropout / Hub Dimensions
135mm x 10mm, HVS Adjustable Dropouts
Seatpost Diameter
27.2mm with Integrated Seat Clamp
ISCG Tabs
ISCG 05
