| GEOMETRY | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| A - Head Tube Angle LOW | 66.9° | 66.9° | 66.9° | 66.9° |
| A - Head Tube Angle X-LOW | 66.4° | 66.4° | 66.4° | 66.4° |
| B - Seat Tube Angle LOW | 76.0° | 76.0° | 76.0° | 76.0° |
| B - Seat Tube Angle X-LOW | 75.5° | 75.5° | 75.5° | 75.5° |
| C - Virtual Top Tube Length LOW | 584mm | 22.99" | 611mm | 24.04" | 631mm | 24.83" | 652mm | 25.67" |
| C - Virtual Top Tube Length X-LOW | 586mm | 23.07" | 613mm | 24.13" | 633mm | 24.92" | 654mm | 25.75" |
| D - Seat Tube Length | 381mm | 15.00" | 432mm | 17.00" | 470mm | 18.50" | 508mm | 20.00" |
| E - Bottom Bracket Height LOW | 337mm | 13.14" | 337mm | 13.28" | 337mm | 13.28" | 337mm | 13.28" |
| E - Bottom Bracket Height X- LOW | 329mm | 12.82" | 329mm | 12.96" | 329mm | 12.96" | 329mm | 12.96" |
| F - Bottom Bracket Drop LOW | 36mm | 1.40" | 36mm | 1.40" | 36mm | 1.40" | 36mm | 1.40" |
| F - Bottom Bracket Drop X-LOW | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" |
| G - Head Tube Length | 90mm | 3.54" | 110mm | 4.33" | 110mm | 4.33" | 120mm | 4.72" |
| H - Chain Stay Length LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| H - Chain Stay Length X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
| I - Wheel Base LOW | 1156mm | 45.50" | 1183mm | 46.58" | 1203mm | 47.37" | 1227mm | 48.31 |
| I - Wheel Base X- LOW | 1157mm | 45.55" | 1185mm | 46.64" | 1205mm | 47.43" | 1228mm | 48.36 |
| J - Axle to Crown | 541mm | 21.30" | 541mm | 21.30" | 541mm | 21.30" | 541mm | 21.30" |
| K - Offset | 51mm | 2.01" | 51mm | 2.01" | 51mm | 2.01" | 51mm | 2.01" |
| L - Front to Center LOW | 727mm | 28.63" | 755mm | 29.71" | 775mm | 30.50" | 799mm | 31.44" |
| L - Front to Center X-LOW | 727mm | 28.63" | 755mm | 29.71" | 775mm | 30.50" | 799mm | 31.44" |
| M - Trail LOW | 100mm | 3.94" | 100mm | 3.94" | 100mm | 3.94" | 100mm | 3.94" |
| M - Trail X-LOW | 104mm | 4.11" | 104mm | 4.11" | 104mm | 4.11" | 104mm | 4.11" |
| N - Stack LOW | 586mm | 23.06" | 604mm | 23.79" | 604mm | 23.79" | 614mm | 24.15" |
| N - Stack X-LOW | 583mm | 22.95" | 601mm | 23.66" | 601mm | 23.66" | 611mm | 24.06" |
| O - Reach LOW | 440mm | 17.34" | 460mm | 18.13" | 480mm | 18.91" | 500mm | 19.70" |
| O - Reach X-LOW | 434mm | 17.09" | 454mm | 17.87" | 474mm | 18.66" | 494mm | 19.45" |
| P - Standover LOW | 652mm | 25.67" | 666mm | 26.22" | 677mm | 26.65" | 690mm | 27.17" |
| P - Standover X-LOW | 646mm | 25.43" | 660mm | 25.98" | 671mm | 26.42" | 684mm | 26.93" |
| Available Sizes | Small, Medium, Large, XLarge |

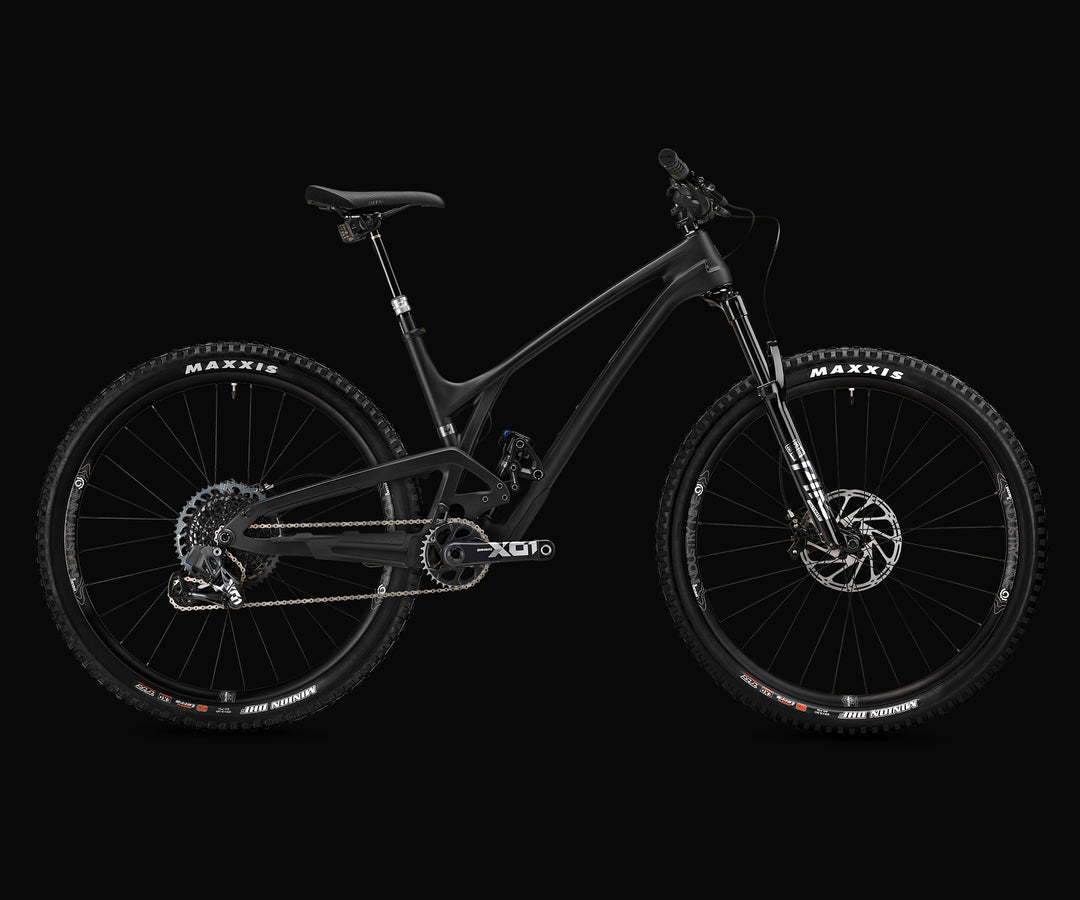

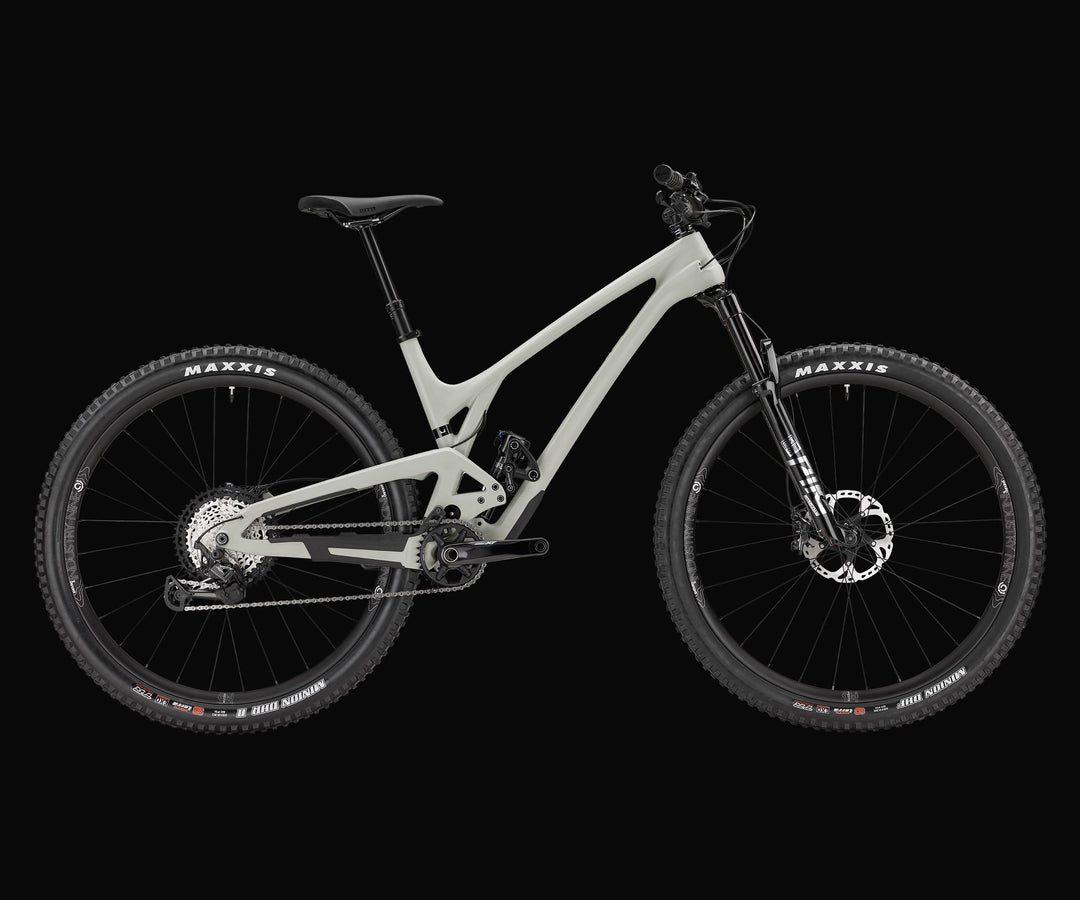

| Available Colors | Blackout, Protein Powder |
| Wheel Travel | 121mm |
| Rear Shock | Rockshox Deluxe Ultimate, Trunnion 165x45, 0L1 LNLC 38TS C1 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 541mm, Rockshox Pike 130mm |
| Fork Offset | 51mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 Series IS42 - IS52 , Upper ZS/44 Lower ZS/62mm Tapered OD |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29" x 2.6" (Varies By Brand) |
| Bottom Bracket Shell | 73mm Threaded |
| Chainline | 55mm-56.5mm |
| Chainguide Mount | Evil Proprietary Upper, ISCG05 Lower |
| Maximum Chainring Size | 36t Single Ring |
| Minimum Chainring Size | 30T |
| Derailleur Hanger | Evil Proprietary |
| Rear Wheel Spacing | 157mm x 12mm |
| Brake Mount Type | Post Mount 180mm |
| Maximum Rear Rotor Size | 203mm |
