Bolt On Axle
Our new axle bolts directly into the derailleur hanger for stiff hassle free operation.
The balance of fun, pop and crushing rock gardens

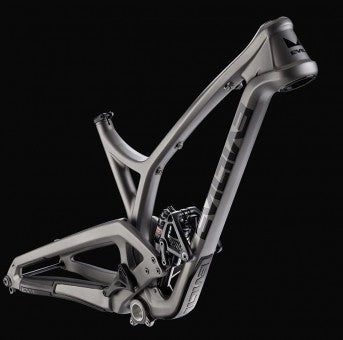

The original Insurgent was born in a time of turmoil, 26 was dying, 27.5 and 29 were the flavour of the day and nobody could decide which one they liked better. We tuned out the noise, busted out of the trends and made a bike that’s fun and had us slashing corners, ripping single track and hitting jump lines. It didn’t disappoint us then, and now it’s just a little bit better’er.

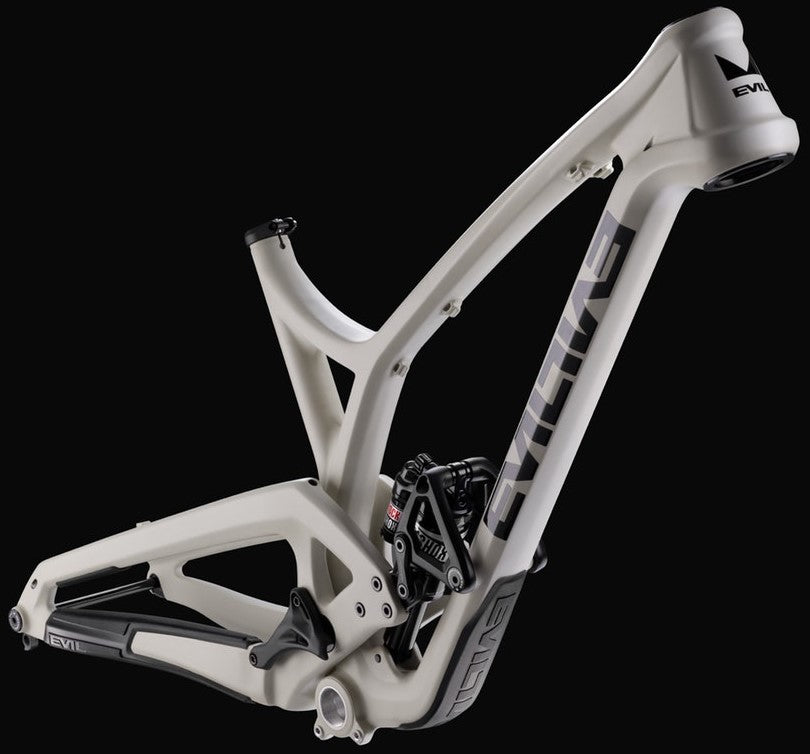

The Insurgent LB is ready to suit your shredding needs. If your favorite past-time is racking up king-of-the-mountain accents and padding your strava stats then you can choose between a RockShox Monarch Plus or the Fox DPX2 rear shock to convert all your power into momentum with mind bending traction and a dependable feeling of plushness. If you prefer sending-it-to-flat, upgrade to the Push ElevenSix, which turns the bike into a square-edge-hit, traction generating, and bottomless feeling two wheeled death machine
If you're into pedalling all day, try a 150mm fork and set the flip chips to the LOW position and enjoy a 74.8° seat angle while the 66.1° head angle keeps the descents in control and the party level high. But if you're into enduro bro, or even better, slashing berms at bike parks, try a 160mm or 170mm fork with the flip chips in the XLOW position and experience a slack and low slung corner destroying play bike that likes to jump and square off corners.
Build Your Insurgent LB
€3,299.99 EURThe hard charging, berm destroying, 27.5" wheeled unicorn has been reborn. Complete with boost rear axle spacing, improved ride feel, fresh colors and water bottle mounts. The Insurgent LB will have you slashing corners, hitting jump lines, and shredding single-track with an uncontrollable cackling and roost-a-flying feeling of fun that’ll make life just a little bit better’er.
Feature
01
Feature
02
Custom ISCG05 Mounts
Custom ISCG05 tabs to accommodate our lower guide collaboration with e13 components.
Feature
03
Delta System
Completely redesigned with a focus on simplicity, weight reduction and strength. We increased lateral frame stiffness with redesigned dog bone links that use integrated forged bosses to connect the linkage and simplify maintenance.
Feature
04
Downtube Protector
Molded Rubber Downtube Protector keeps rocks and debris off the plastic and quiets the ride.
Feature
05
Integrated Chainguide
Fully integrated carbon chainguide to keep that chain on.
Feature
06
Internal Routing
Internal routing for stealth dropper posts. Rear derailleur and brake routing is cleanly routed under the toptube and the rear derailleur cable is internally routed through the swingarm to keep things tidy.
Feature
07
Plastic Fantastic
Uni Directional Carbon with One Piece Molded construction from one of the best factories in the business.
Feature
08
Rubber Protection
Integrated rubber protection for the chainstay and seat stay to keep things peaceful and quiet in the woods.
Feature
09
Sag Meter
We added a fancy integrated SAG meter into the non-drive side Delta Link to make suspension set up easy. Push it forward, sit on your bike, adjust air pressure to 30%, then shred.
Feature
10
Lighter Lay Up
A new lighter layup improves the overall ride quality, maximizing compliance where we wanted and stiffness where we needed.
Kits
X01 Eagle
- Available Sizes
- Small, Medium, Large, XLarge
- Frame
- EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
- Shock
- Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
- Headset
- FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
- Headset Spacers
- Poly Spacers 5mm black
- Fork
- Rockshox Lyrik Charger 2 RC2, 27.5, Solo Air, 160mm Travel, DebonAir, 15x100
- Handlebar
- Raceface SIXC Carbon 35, Rise: 35mm Width: 800mm
- Stem
- Raceface Turbine R 35, Length: 40mm
- Grips
- Evil Lock-on
- Brake - Front
- SRAM Guide RSC
- Brake - Rear
- SRAM Guide RSC
- Rotor - Front
- SRAM Center Line, 180mm
- Rotor - Rear
- SRAM Center Line, 180mm
- Brake Adapter
- Post to Post Mount Adapter
- Shifter
- SRAM X01 Eagle, 12sp
- Rear Derailleur
- SRAM X01 Eagle, 12sp
- Cassette
- SRAM XG-1295 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
- Chain
- SRAM X01 Eagle w/Powerlock
- Crankset
- SRAM Eagle XO Carbon, DUB, 32t ring
- Bottom Bracket
- SRAM DUB 73mm BSA
- Wheelset - Front
- e*thirteen TRS Race Carbon, Internal Width: 31mm, 15x110
- Wheelset - Rear
- e*thirteen TRS Race Carbon, Internal Width: 31mm, 12x148
- Tire - Front
- Maxxis Minion DHF EXO TR, 27.5 x 2.5
- Tire - Rear
- Maxxis Minion DHR II EXO TR, 27.5 x 2.3
- Tubes
- 27.5" tubes
- Seatpost
- Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
- Saddle
- WTB Silverado
* Specifications are subject to change without notice
GX
- Available Sizes
- Small, Medium, Large, XLarge
- Frame
- EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
- Shock
- Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
- Headset
- FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
- Headset Spacers
- Poly Spacers 5mm black
- Fork
- Rockshox Lyrik Charger 2 RC2, 27.5, Solo Air, 160mm Travel, DebonAir, 15x110
- Handlebar
- Raceface Chester 35, Rise: 35mm Width: 780mm
- Stem
- Raceface Aeffect R 35, Length: 40mm
- Grips
- Evil Lock-on
- Brake - Front
- SRAM Guide R
- Brake - Rear
- SRAM Guide R
- Rotor - Front
- SRAM Center Line, 180mm
- Rotor - Rear
- SRAM Center Line, 180mm
- Brake Adapter
- Post to Post Mount Adapter
- Shifter
- SRAM GX Eagle, 12sp
- Rear Derailleur
- SRAM GX Eagle, 12sp
- Cassette
- SRAM XG-1275 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
- Chain
- SRAM GX Eagle w/Powerlock
- Crankset
- Descendent 6K, DUB, Direct Mount 32t ring
- Bottom Bracket
- Sram DUB 73mm BSA
- Wheelset - Front
- e*thirteen TRS, Internal Width: 30mm, 15x110
- Wheelset - Rear
- e*thirteen TRS, Internal Width: 30mm, 12x148
- Tire - Front
- Maxxis Minion DHF EXO TR, 27.5 x 2.5
- Tire - Rear
- Maxxis Minion DHR II EXO TR, 27.5 x 2.3
- Tubes
- 27.5" tubes
- Seatpost
- RockShox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
- Saddle
- WTB Volt Pro
* Specifications are subject to change without notice
Geo
| Frame Geo (160mm Fork) | S | M | L | XL |
|---|---|---|---|---|
| A - Head Angle Low | 65.6° | 65.6° | 65.6° | 65.6° |
| Head Angle X-Low | 64.8° | 64.8° | 64.8° | 64.8° |
| B - Seat Tube Angle Low | 74.3° | 74.3° | 74.3° | 74.3° |
| Seat Tube Angle X-Low | 73.4° | 73.4° | 73.4° | 73.4° |
| C - Virtual Top Tube Length | 598mm | 23.50" | 619mm | 24.37" | 640mm | 25.20" | 661mm | 26.00" |
| D - Seat Tube Length | 390mm | 15.40" | 425mm | 16.70" | 460mm | 18.10" | 495mm | 19.50" |
| Bottom Bracket Height Low | 346mm | 13.60" | 346mm | 13.60" | 346mm | 13.60" | 346mm | 13.60" |
| E - Bottom Bracket Height X-Low | 334.4mm | 13.20" | 334.4mm | 13.20" | 334.4mm | 13.20" | 334.4mm | 13.20" |
| F - Head Tube Length | 100mm | 3.90" | 114mm | 4.50" | 127mm | 5.00" | 141mm | 5.60" |
| G - Chain Stay Length Low | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| Chain Stay Length X-Low | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" |
| H - Wheel Base Low | 1155mm | 45.50" | 1178mm | 46.40" | 1200mm | 47.30" | 1223mm | 48.20" |
| Wheel Base X-Low | 1157mm | 45.60" | 1180mm | 46.50" | 1202mm | 47.30" | 1224mm | 48.20" |
| I - Standover | 652mm | 25.70" | 681mm | 26.80" | 701mm | 27.60" | 715mm | 28.10" |
| J - Axle to Crown | 552mm | 552mm | 552mm | 552mm |
| K - Offset | 42mm | 42mm | 42mm | 42mm |
| Stack | 589mm | 23.20" | 602mm | 23.70" | 614mm | 24.20" | 627mm | 24.70" |
| Reach | 416mm | 16.40" | 433mm | 17.10" | 451mm | 17.70" | 468mm | 18.40" |
| Sizing | 5'3" - 5'8" | 5'8" - 6'0" | 6'0" - 6'4" | 6'4" |
| Frame Geo (180mm Fork) | S | M | L | XL |
|---|---|---|---|---|
| A - Head Angle Low | 64.4° | 64.4° | 64.4° | 64.4° |
| Head Angle X-Low | 63.6° | 63.6° | 63.6° | 63.6° |
| B - Seat Tube Angle Low | 66.8° | 66.8° | 66.8° | 66.8° |
| Seat Tube Angle X-Low | 65.7° | 65.7° | 65.7° | 65.7° |
| C - Virtual Top Tube Length | 598mm | 23.53" | 619mm | 24.35" | 640mm | 25.18" | 661mm | 26.01" |
| D - Seat Tube Length | 390mm | 15.35" | 425mm | 16.73" | 460mm | 18.11" | 495mm | 19.49" |
| Bottom Bracket Height Low | 354mm | 13.94" | 354mm | 13.94" | 354mm | 13.94" | 354mm | 13.94" |
| E - Bottom Bracket Height X-Low | 340mm | 13.39" | 340mm | 13.39" | 340mm | 13.39" | 340mm | 13.39" |
| F - Head Tube Length | 100mm | 3.94" | 114mm | 4.49" | 127mm | 5.00" | 141mm | 5.55" |
| G - Chain Stay Length Low | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| Chain Stay Length X-Low | 432mm | 17.04" | 432mm | 17.04" | 432mm | 17.04" | 432mm | 17.04" |
| H - Wheel Base Low | 1161mm | 45.71" | 1184mm | 46.61" | 1207mm | 47.52" | 1232mm | 48.50" |
| Wheel Base X-Low | 1160mm | 45.67" | 1183mm | 46.57" | 1205mm | 47.44" | 1230mm | 48.43" |
| I - Standover | 651mm | 25.63" | 680mm | 26.77" | 700mm | 27.56" | 715mm | 28.15" |
| J - Axle to Crown | 552mm | 22.91" | 552mm | 22.91" | 552mm | 22.91" | 552mm | 22.91" |
| K - Offset | 46mm | 1.81" | 46mm | 1.81" | 46mm | 1.81" | 46mm | 1.81" |
| Stack | 582mm | 22.91" | 582mm | 22.91" | 582mm | 22.91" | 582mm | 22.91" |
| Reach | 414mm | 16.30" | 431mm | 16.98" | 449mm | 17.68" | 466mm | 18.35" |
| Sizing | 5'3" - 5'8" | 5'8" - 6'0" | 6'0" - 6'4" | 6'4" |
| Frame Geo (150mm Fork) | S | M | L | XL |
|---|---|---|---|---|
| A - Head Angle Low | 66.1° | 66.1° | 66.1° | 66.1° |
| Head Angle X-Low | 65.2° | 65.2° | 65.2° | 65.2° |
| B - Seat Tube Angle Low | 74.8° | 74.8° | 74.8° | 74.8° |
| Seat Tube Angle X-Low | 73.9° | 73.9° | 73.9° | 73.9° |
| C - Virtual Top Tube Length | 598mm | 23.50" | 619mm | 24.37" | 640mm | 25.20" | 661mm | 26.00" |
| D - Seat Tube Length | 390mm | 15.40" | 425mm | 16.70" | 460mm | 18.10" | 495mm | 19.50" |
| Bottom Bracket Height Low | 342mm | 13.50" | 342mm | 13.50" | 342mm | 13.50" | 342mm | 13.50" |
| E - Bottom Bracket Height X-Low | 331mm | 13.00" | 331mm | 13.00" | 331mm | 13.00" | 331mm | 13.00" |
| F - Head Tube Length | 100mm | 3.90" | 114mm | 4.50" | 127mm | 5.00" | 141mm | 5.60" |
| G - Chain Stay Length Low | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| Chain Stay Length X-Low | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" |
| Wheel Base Low | 1151mm | 45.30" | 1174mm | 46.20" | 1196mm | 47.10" | 1219mm | 48.00" |
| H - Wheel Base X-Low | 1153mm | 45.40" | 1176mm | 46.30" | 1199mm | 47.20" | 1222mm | 48.10" |
| I - Standover | 651mm | 25.60" | 680mm | 26.80" | 700mm | 27.60" | 715mm | 28.10" |
| J - Axle to Crown | 542mm | 542mm | 542mm | 542mm |
| K - Offset | 42mm | 42mm | 42mm | 42mm |
| Stack | 586mm | 23.07" | 599mm | 23.60" | 611mm | 24.00" | 623mm | 24.50" |
| Reach | 421mm | 16.60" | 438mm | 17.20" | 455mm | 17.90" | 472mm | 18.60" |
| Sizing | 5'3" - 5'8" | 5'8" - 6'0" | 6'0" - 6'4" | 6'4" |
Fit
| Component Sizing | Small | Medium | Large | XLarge |
|---|---|---|---|---|
| Stem Length | 35-50mm | 35-50mm | 35-50mm | 35-50mm |
| Stem Rise | 0° | 0° | 0° | 0° |
| Handlebar Rise | 35mm | 35mm | 35mm | 35mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Sizing | 5'3" - 5'8" | 5'8" - 6'0" | 6'0" - 6'4" | 6'4" |
Specs
- Available Sizes
- Small, Medium, Large, XLarge
- Wheel Travel
- 151mm
- Rear Shock
- Rock Shox Monarch Plus RC3 Debonair, 200x57 (2 volume spacers)
- Shock Hardware
- 22mm x 8mm
- Fork Axle to Crown
- 542mm with Rockshox Pike 150mm fork
- Fork Offset
- 42mm
- Headtube
- Tapered 1 1/8" - 1 1/2"
- Headset
- FSA Integrated Tapered No. 57/68 Upper 44mm Lower 62mm Tapered OD
- Seatpost Diameter
- 30.9mm
- Seatclamp Diameter
- 34.9mm
- Rear Wheel Diameter
- 27.5"
- Maximum Rear Tire Size
- 27.5" x 2.5" (Varies By Brand)
- Bottom Bracket Shell
- 73mm Threaded
- Chainline
- 49mm
- Chainguide Mount
- ISCG05
- Maximum Chainring Size
- 36T Single Ring
- Minimum Chainring Size
- 30T Single Ring / 32T Oval
- Rear Wheel Spacing
- 148mm x 12mm
- Front Derailleur
- Single Ring Only
- Brake Mount Type
- Post Mount 180mm
- Maximum Rear Rotor Size
- 203mm
Shock
Rock Shox Monarch Plus
Rock Shox Monarch Plus RC3 Debonair:
Prior to performing shock adjustments, determine riding weight ( fully geared up ). Push the shock O-ring against the wiper seal and push the sag adjuster on the non drive side of the Delta Link forward. Lean up against a sturdy wall, friend, or telephone pole and sit on the bike. Being careful not to tip over, dismount the bike and check the SAG indicator. The SAG indicator should barely cover the 30% mark and the O-ring should measure between 15-17mm from the shock body for ideal setup. The Insurgent uses a high volume air canister which compliments the progressive spring curve of the Delta System Suspension, if a less progressive feel is desired then experiment with different air volume spacers. We also found that the Insurgent performs great in the "Descend" position for most riding conditions, however, for sufferfest climbs and high speed trail riding the "Pedal" position also works well.
Note:
These are just guidelines to start you on your suspension tuning journey. Its very important to tune your front and rear suspension together to get the best set up possible. Play around and find that special tune, then write it down so you don’t forget!
Note:
The dual progressive leverage rate curve might make some spring rates seem stiff, we encourage you to try different rates that will allow you to sit deeper into the suspension travel and find that perfect set up.
Fox Float X2
Fox Float DPX2:
Prior to performing shock adjustments, determine riding weight ( fully geared up ). Push the shock O-ring against the wiper seal and push the sag adjuster on the non drive side of the Delta Link forward. Lean up against a sturdy wall, friend, or telephone pole and sit on the bike. Being careful not to tip over, dismount the bike and check the SAG indicator. The SAG indicator should barely cover the 30% mark and the O-ring should measure between 15-17mm from the shock body for ideal setup. The Insurgent uses a high volume air canister which compliments the progressive spring curve of the Delta System Suspension, if a less progressive feel is desired then experiment with different air volume spacers.
Note:
These are just guidelines to start you on your suspension tuning journey. Its very important to tune your front and rear suspension together to get the best set up possible. Play around and find that special tune, then write it down so you don’t forget!
Note:
The dual progressive leverage rate curve might make some spring rates seem stiff, we encourage you to try different rates that will allow you to sit deeper into the suspension travel and find that perfect set up.
Faq
How do I adjust my flip chips?
Remove upper and lower linkage bolts then remove 3 flip chip bolts. Lightly wiggle flip chips free and flip 180 degrees with desired position facing up. The flip chip position will be visible when sitting on the bike and should read High/Low or Low/XLow depending on model.
How do I adjust my head tube geometry?
If equipped with optional Angleset. Using a headset removal tool remove lower cup. Rotate 180 degrees. The lower headtube cup is labeled +1 or -1. Place desired position to the front of the bike. Reinstall with headset tool.
What size is the seat post?
The Insurgent LB uses a 30.9 Stealth seat post and a 34.9 seat clamp.
What is the warranty on the Insurgent?
3 Year limited warranty
What type of headset does the Insurgent use?
The Insurgent uses an FSA Integrated Tapered No.57/68 headset, alternatively bearings from other suppliers can be used. Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Why does the chain ride so close to the chain stay?
Due to progressive kinematics, tight clearances and the need for super stiff chain stays we increased the chain stay heights which gives about 2-3mm of chain clearance just like a motocross bike.. Braaap
