| GEOMETRY | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| A - Head Tube Angle - LOW | 66.4° | 66.4° | 66.4° | 66.4° |
| A - Head Tube Angle – X-LOW | 65.8° | 65.8° | 65.8° | 65.8° |
| B - Seat Tube Angle - LOW | 77° | 77° | 77° | 77° |
| B - Seat Tube Angle – X-LOW | 76° | 76° | 76° | 76° |
| C - Virtual Top Tube Length - LOW | 594mm | 23.38" | 617mm | 24.28" | 639mm | 25.15" | 661mm | 26.03" |
| C - Virtual Top Tube Length – X-LOW | 596mm | 23.46" | 619mm | 24.37" | 641mm | 25.24" | 663mm | 26.10" |
| D - Seat Tube Length | 380mm | 14.96" | 431mm | 16.96" | 460mm | 18.11" | 495mm | 19.48" |
| E - Bottom Bracket Height - LOW | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" |
| E - Bottom Bracket Height – X-LOW | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" |
| F - Bottom Bracket Drop - LOW | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" |
| F - Bottom Bracket Drop – X-LOW | 34mm | 1.34" | 334mm | 1.34" | 34mm | 1.34" | 34mm | 1.34" |
| G - Head Tube Length | 95mm | 3.74" | 105mm | 4.13" | 115mm | 4.52" | 125mm | 4.92" |
| H - Chain Stay Length - LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| H - Chain Stay Length – X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
| I - Wheel Base - LOW | 1180mm | 46.45" | 1205mm | 47.44" | 1231mm | 48.46" | 1256mm | 49.44" |
| I - Wheel Base – X-LOW | 1182mm | 46.54" | 1207mm | 47.52" | 1233mm | 48.54" | 1258mm | 49.53" |
| J - Axle to Crown | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" | 561mm | 22.08" |
| K - Offset | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" |
| L - Front to Center - LOW | 750mm | 29.52" | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| L - Front to Center – X-LOW | 750mm | 29.52 | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
| M - Trail - LOW | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" |
| M -Trail – X-LOW | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" |
| N - Stack - LOW | 613mm | 24.13" | 622mm | 24.5" | 632mm | 24.86" | 641mm | 25.22" |
| N - Stack – X-LOW | 618mm | 24.33" | 627mm | 24.69" | 637mm | 25.08" | 646mm | 25.43" |
| O - Reach - LOW | 448mm | 17.36" | 469mm | 18.47" | 491mm | 19.32" | 512mm | 20.17" |
| O - Reach – X-LOW | 442mm | 17.40" | 463mm | 18.23" | 485mm | 19.09" | 506mm | 19.92" |
| P - Standover - LOW | 672mm | 26.45" | 684mm | 26.92" | 695mm | 27.38" | 706mm | 27.8" |
| P - Standover – X-LOW | 664mm | 26.14" | 676mm | 26.61" | 687mm | 27.05" | 698mm | 27.48" |
| Available Sizes | Small, Medium, Large, XLarge |

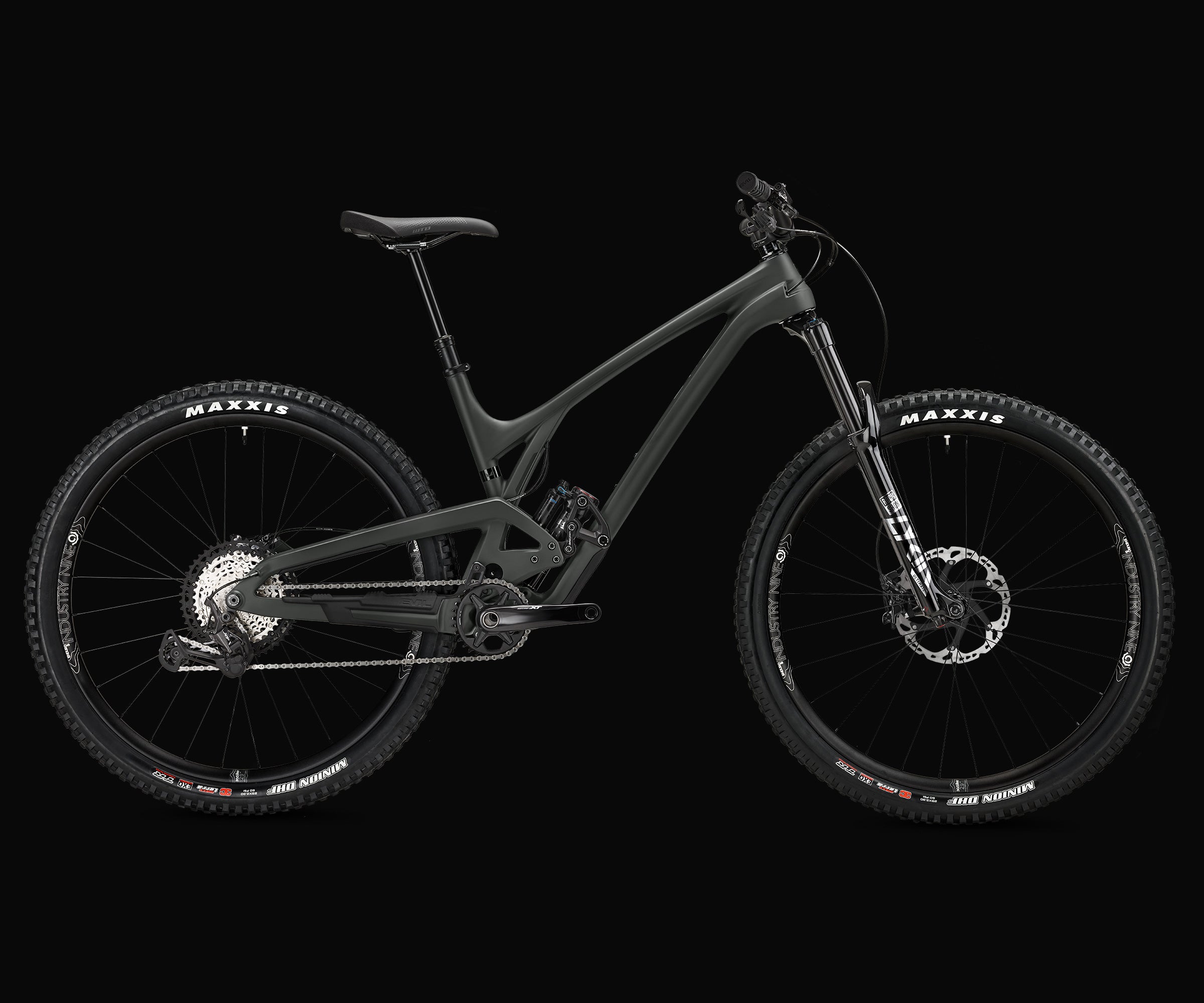

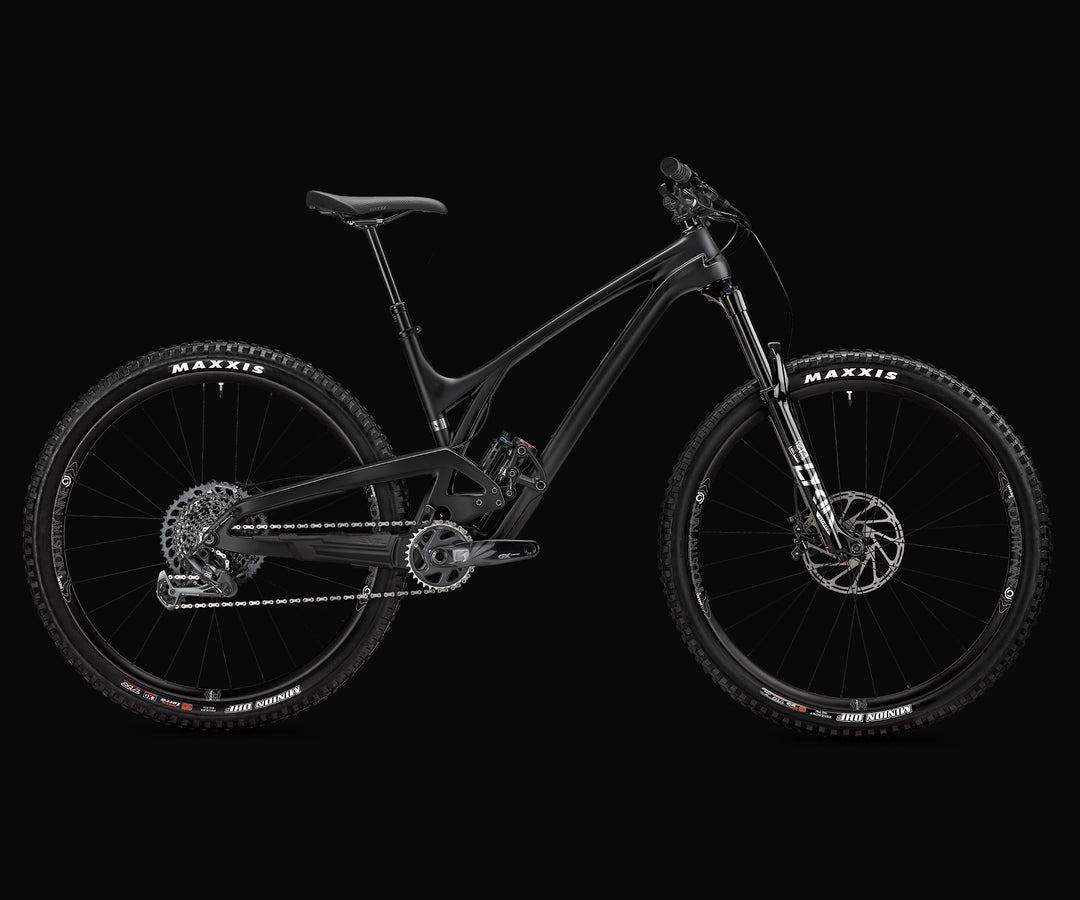

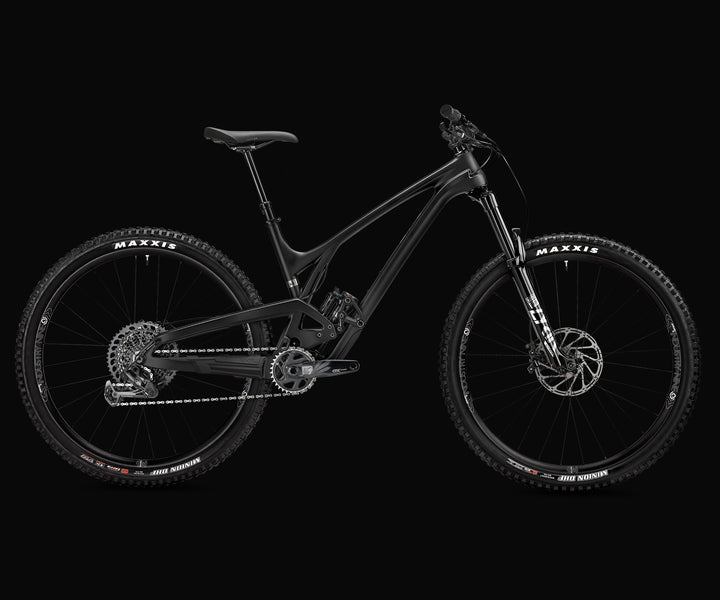

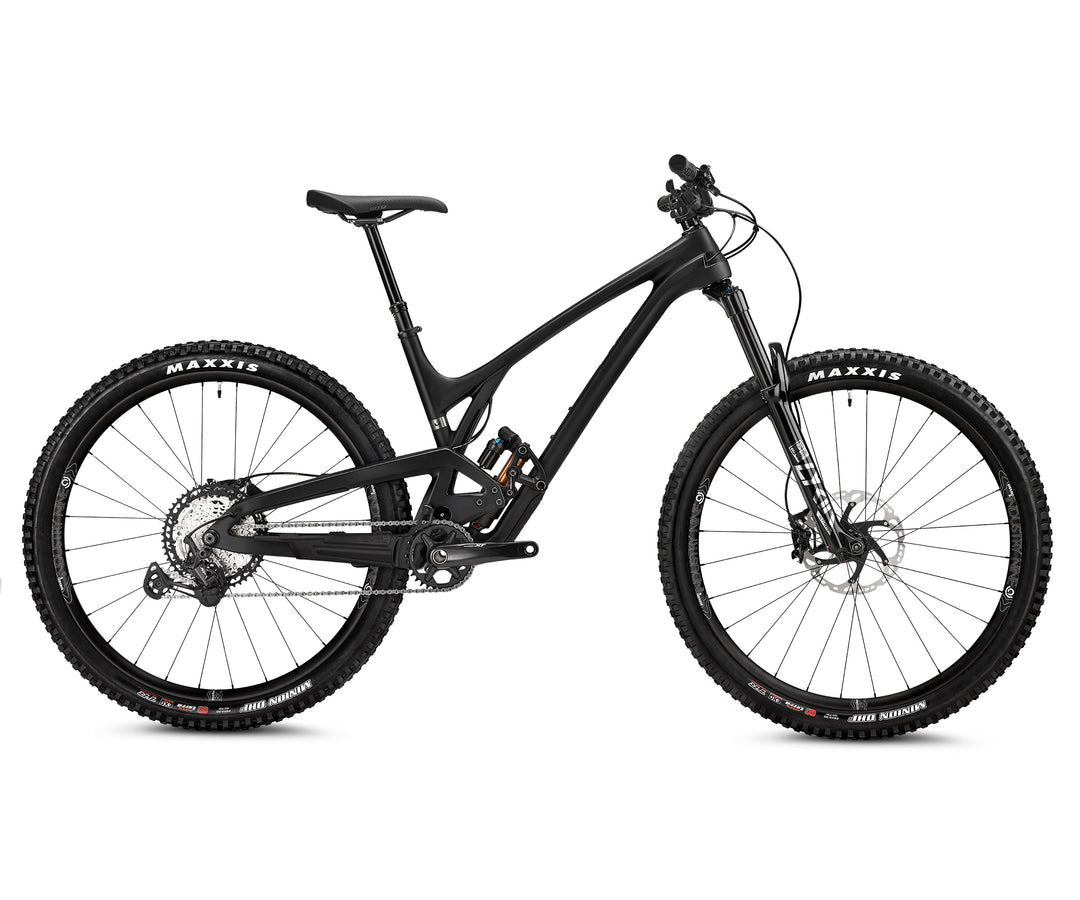

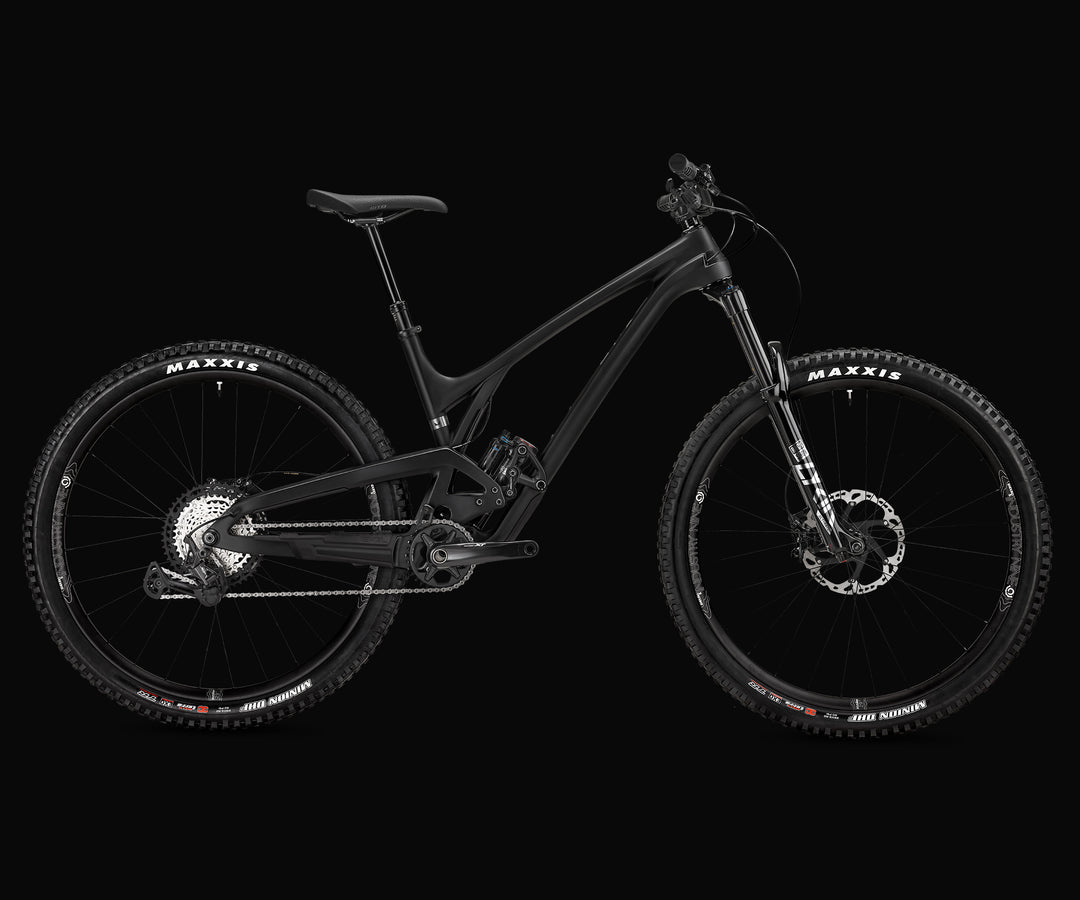

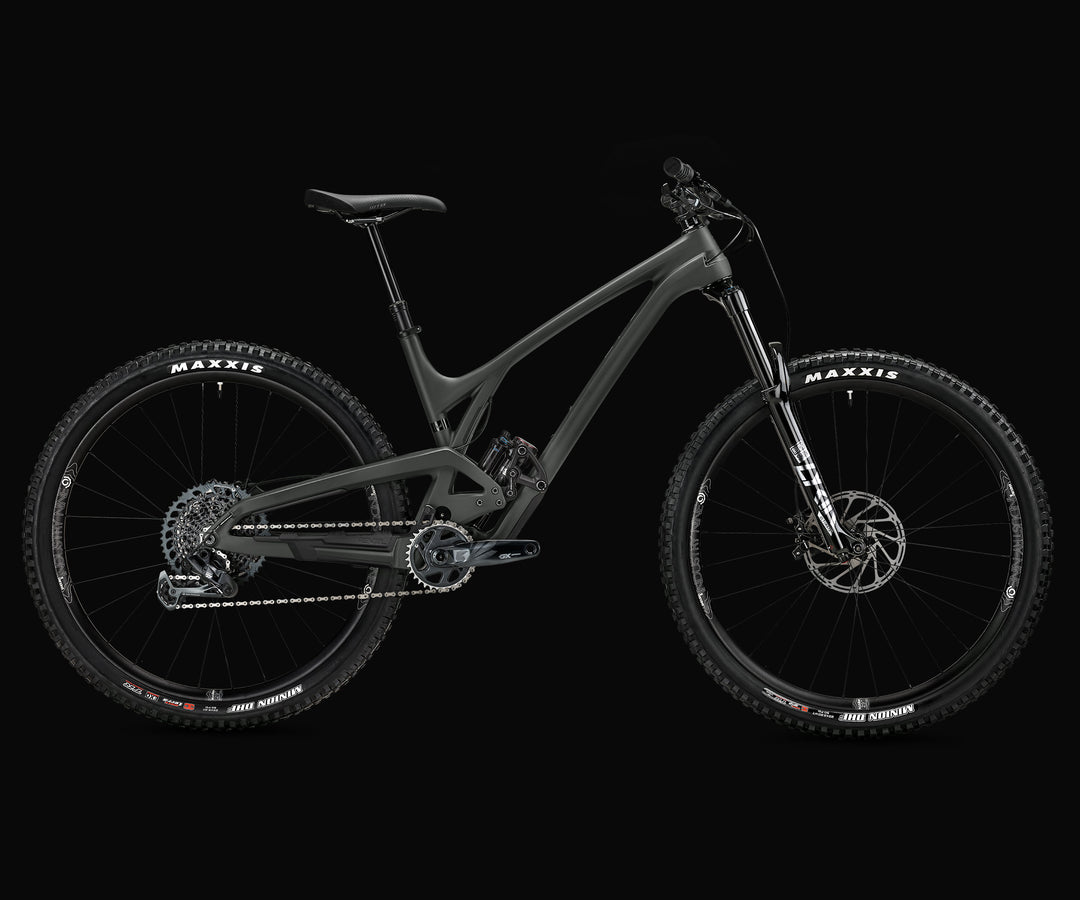

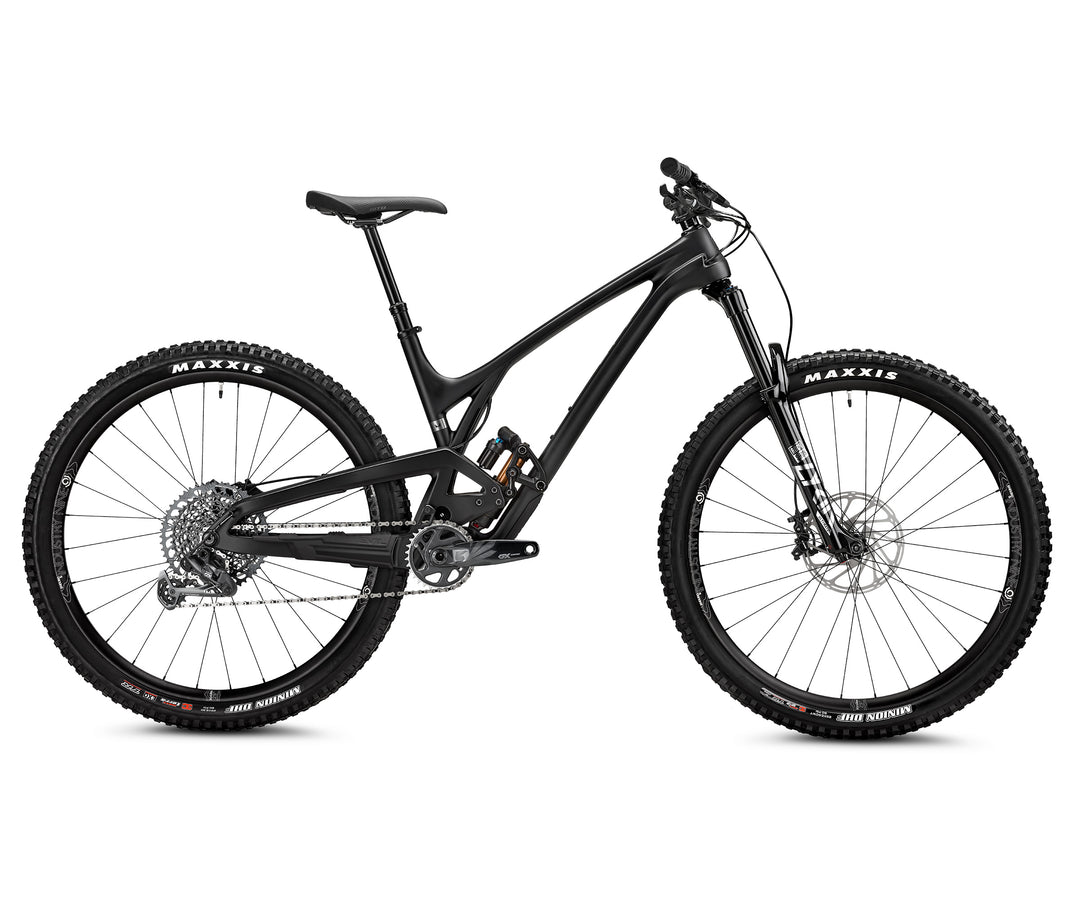

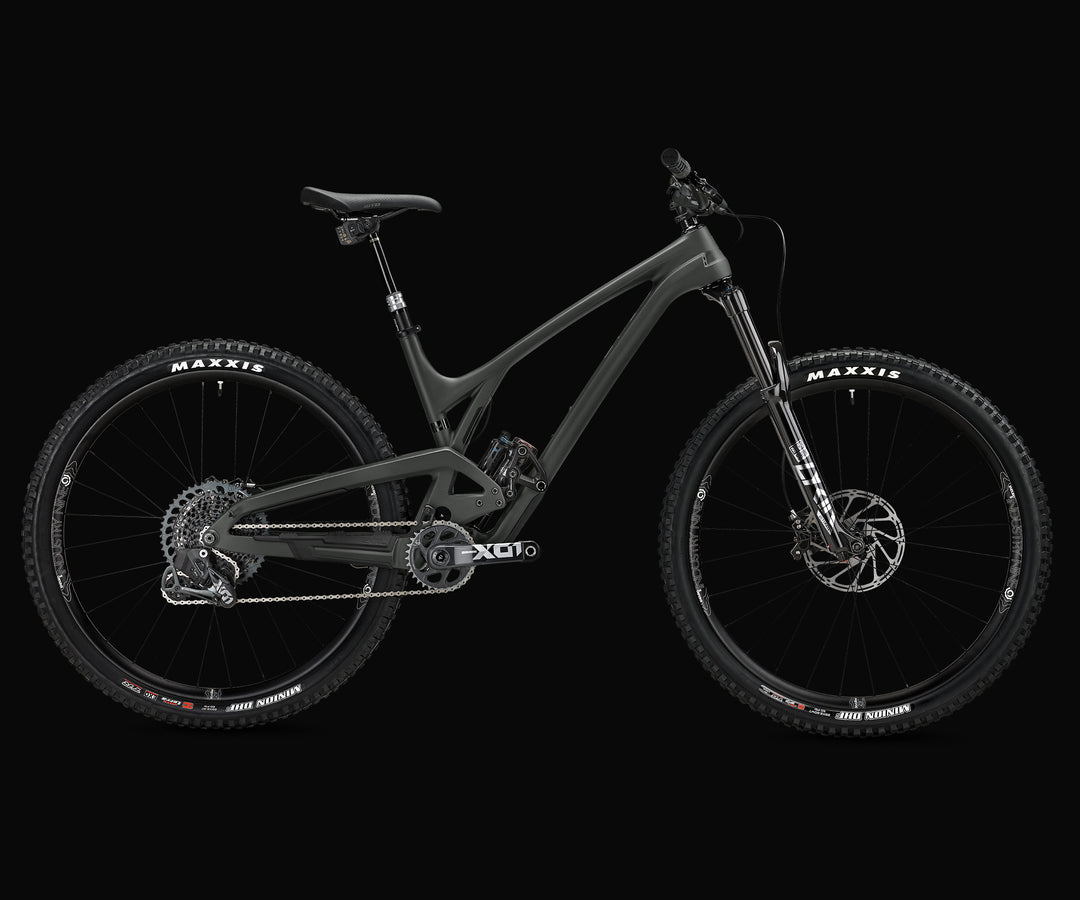

| Available Colors | Wasabi Shadow, Blackout |
| Wheel Travel | 141mm |
| Rear Shock | Rockshox Super Deluxe Ultimate, Trunnion 185x55, 0L1 LNLC HB 38TS C1 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 561mm ( Rockshox Lyrik Ultimate 150mm ) |
| Fork Offset | 42mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 ZS44/28.6/H8 ZS62/40 |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29" x 2.6" (Varies By Brand) |
| Bottom Bracket Shell | 73mm Threaded |
| Chainline | 55mm-56.5mm |
| Chainguide Mount | Evil Proprietary (Upper), ISCG05 (Lower) |
| Maximum Chainring Size | 36T Single Ring |
| Minimum Chainring Size | 30T |
| Rear Derailleur Hanger | Evil Proprietary |
| Rear Wheel Spacing | 157mm x 12mm |
| Rear Brake Mount Type | Post Mount 180mm |
| Maximum Rear Rotor Size | 203mm |
