| GEOMETRY | S | M | L | XL |
|---|---|---|---|---|
| A - Head Tube Angle LOW | 65.2° | 65.2° | 65.2° | 65.2° |
| A - Head Tube Angle X-LOW | 64.6° | 64.6° | 64.6° | 64.6° |
| B - Seat Tube Angle LOW | 77.0° | 77.0 | 77.0 | 77.0° |
| B - Seat Tube Angle X-LOW | 76.5° | 76.5° | 76.5° | 76.5° |
| C - Virtual Top Tube Length LOW | 588mm | 23.16" | 608mm |23.92" | 630mm | 24.81" | 653mm | 25.69" |
| C - Virtual Top Tube Length X-LOW | 591mm | 23.27" | 611mm | 24.06 | 633mm | 24.92" | 656mm | 25.83" |
| D - Seat Tube Length | 390mm | 15.35" | 425mm | 16.73" | 460mm | 18.11" | 495mm | 19.49" |
| E - Bottom Bracket Height LOW | 351mm | 13.80" | 351mm | 13.80" | 351mm | 13.80" | 351mm | 13.80" |
| E - Bottom Bracket Height X- LOW | 342mm | 13.46" | 342mm | 13.46" | 342mm | 13.46" | 342mm | 13.46" |
| F - Bottom Bracket Drop LOW | 23mm | 00.91" | 23mm | 00.91" | 23mm | 00.91" | 23mm | 00.91" |
| F - Bottom Bracket Drop X-LOW | 32mm | 1.26" | 32mm | 1.26" | 32mm | 1.26" | 32mm | 1.26" |
| G - Head Tube Length | 104mm | 4.09" | 114mm | 4.49" | 127mm | 5.00" | 139mm | 5.47" |
| H - Chain Stay Length LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
| H - Chain Stay Length X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
| I - Wheel Base LOW | 1197mm | 47.11" | 1218mm | 47.94" | 1243mm | 48.94" | 1268mm | 49.92 |
| I - Wheel Base X- LOW | 1198mm | 47.17" | 1219mm | 48.00" | 1245mm | 49.00" | 1270mm | 49.99 |
| J - Axle to Crown | 571mm | 22.48" | 571mm | 22.48" | 571mm | 22.48" | 571mm | 22.48" |
| K - Offset | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" |
| L - Front to Center LOW | 767mm | 30.21" | 789mm | 31.05" | 814mm | 32.05" | 839mm | 33.03" |
| L - Front to Center X-LOW | 767mm | 30.21" | 789mm | 31.05" | 814mm | 32.05" | 839mm | 33.03" |
| M - Trail LOW | 126mm | 4.96" | 126mm | 4.96" | 126mm | 4.96" | 126mm | 4.96" |
| M - Trail X-LOW | 131mm | 5.15" | 131mm | 5.15" | 131mm | 5.15" | 131mm | 5.15" |
| M - Stack LOW | 621mm | 24.43" | 630mm | 24.79" | 641mm | 25.25" | 652mm | 25.68" |
| M - Stack X-LOW | 626mm | 24.65" | 635mm | 25.01" | 646mm | 25.43" | 657mm | 25.87" |
| O - Reach LOW | 445mm | 17.52" | 462mm | 18.19" | 482mm | 18.98" | 502mm | 19.76" |
| O - Reach X-LOW | 438mm | 17.24" | 455mm | 17.91" | 475mm | 18.70" | 495mm | 19.49" |
| P - Standover LOW | 710mm | 27.95" | 719mm | 28.31" | 727mm | 28.62" | 738mm | 29.06" |
| P - Standover X-LOW | 704mm | 27.72" | 713mm | 28.07" | 721mm | 28.39" | 732mm | 28.82" |
| Available Sizes | Small, Medium, Large, XLarge |

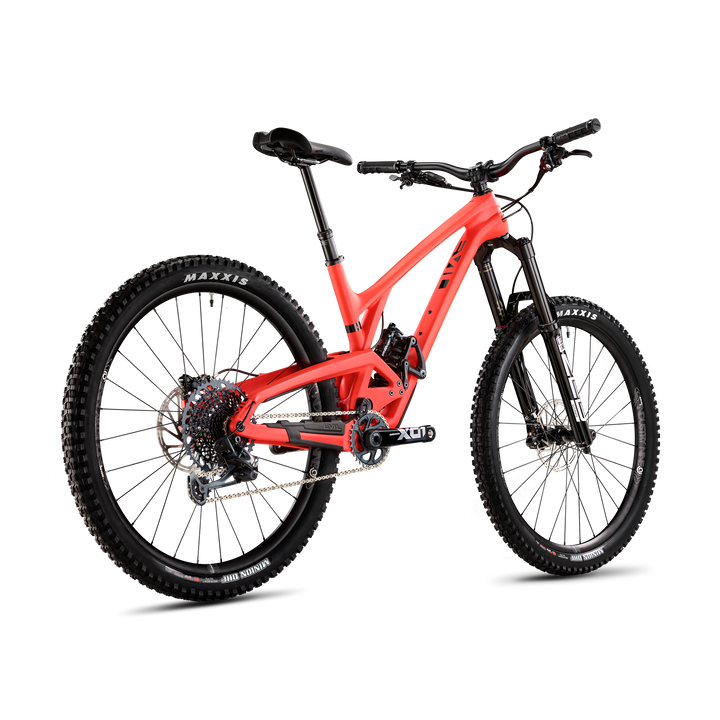

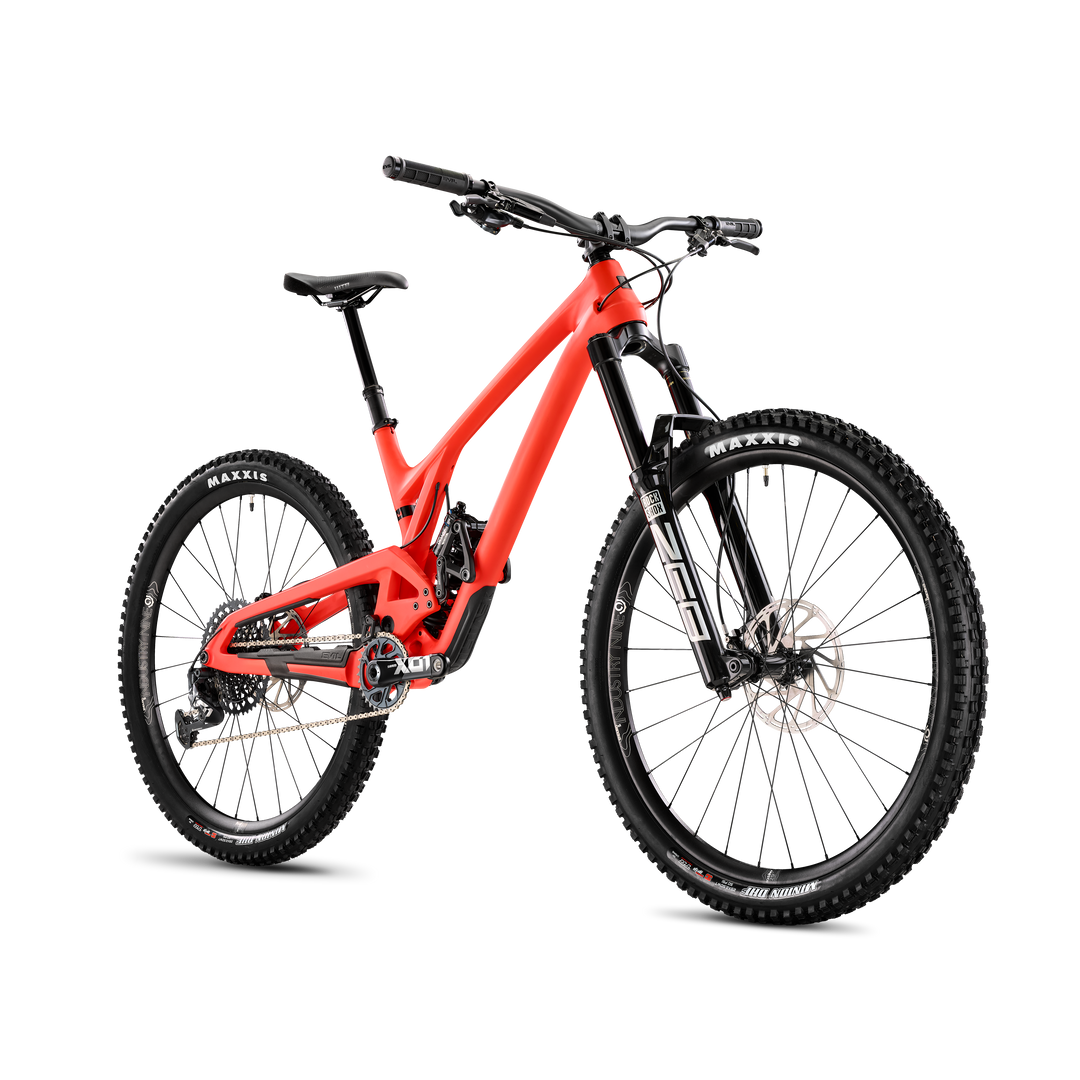

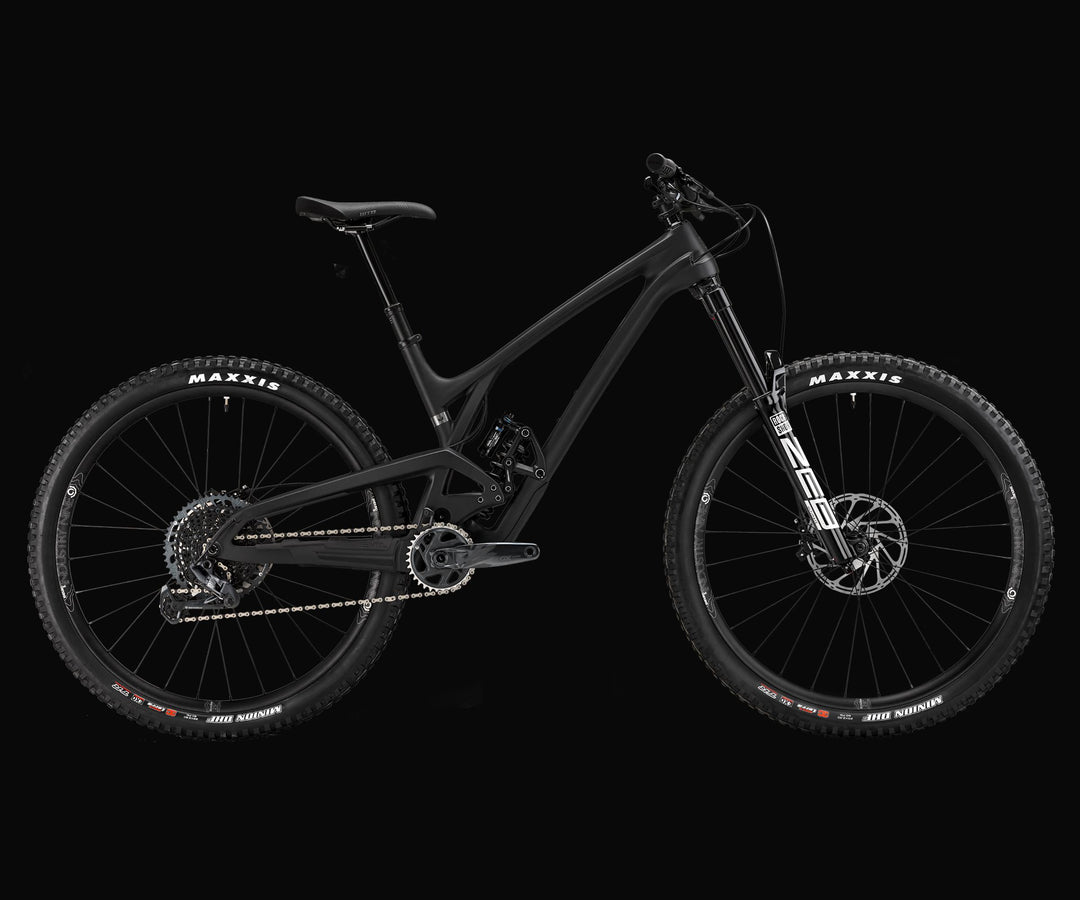

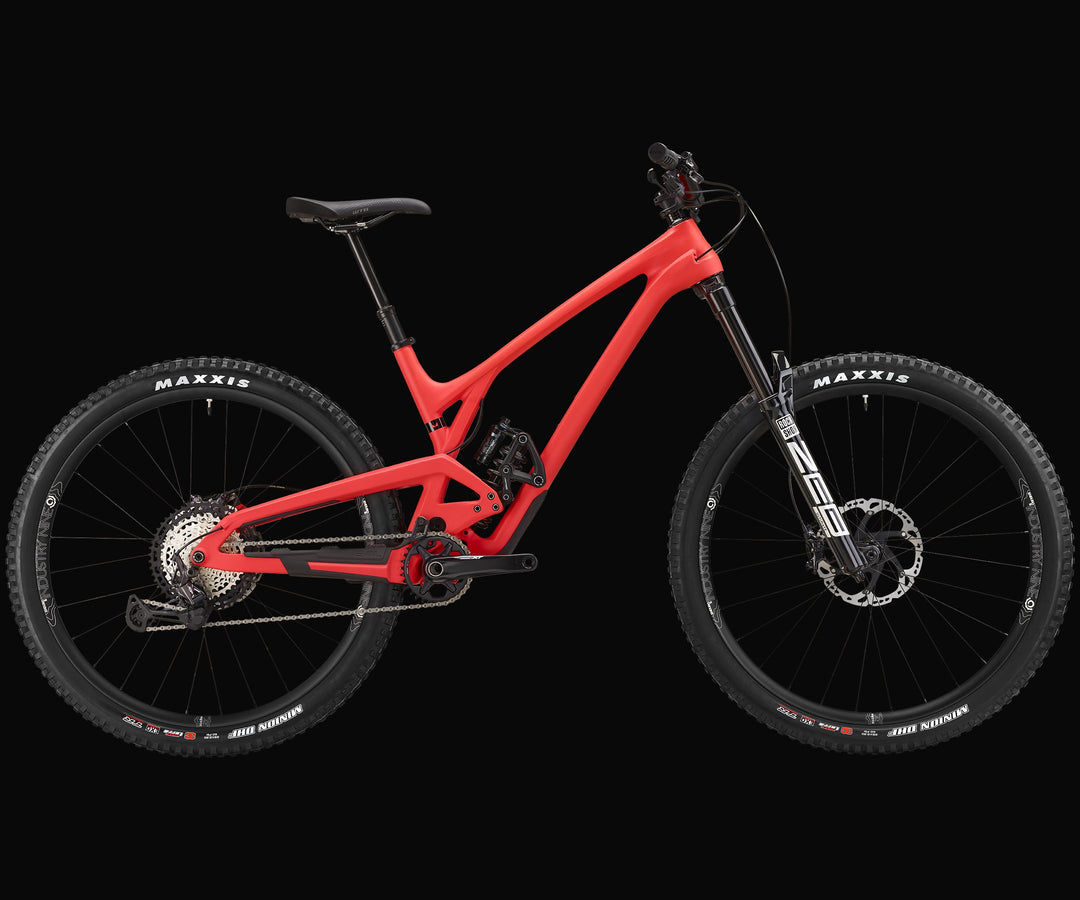

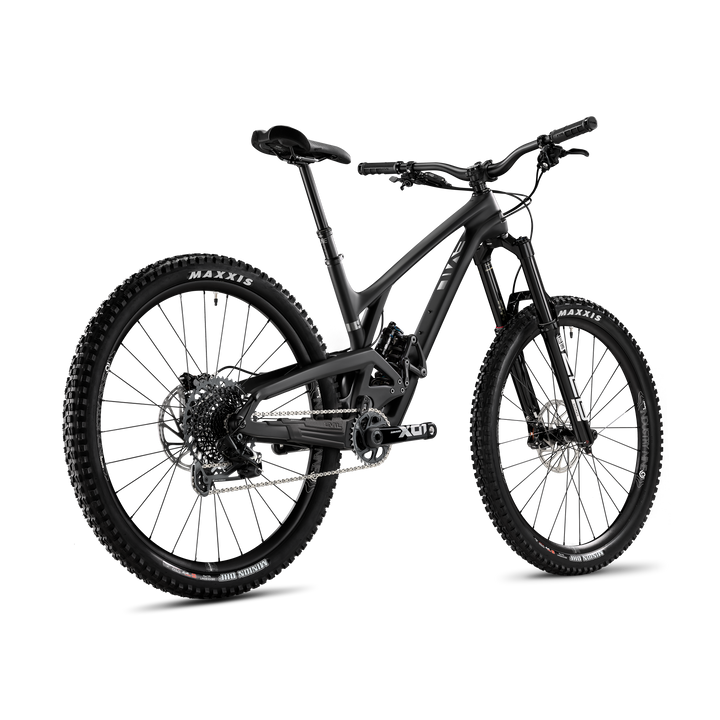

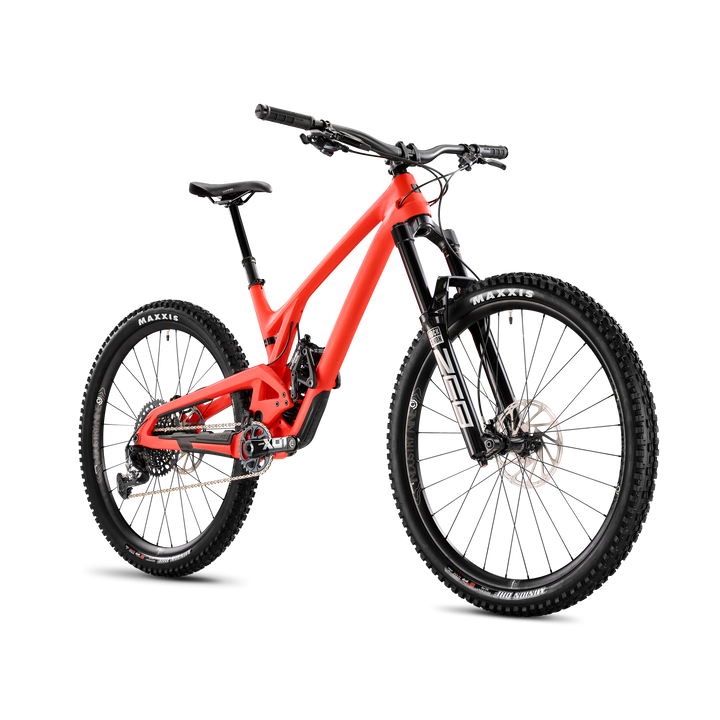

| Available Colors | Coral Reefer, Blackout |
| Wheel Travel | 166mm |
| Rear Shock | Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 586mm, Rockshox Zeb 170mm |
| Fork Offset | 42mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 Series IS42 - IS52 , Upper ZS/44 Lower ZS/62mm Tapered OD |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29" x 2.6" (Varies By Brand) |
| Bottom Bracket Shell | 73mm Threaded |
| Chainline | 55mm |
| Chainguide Mount | Evil Proprietary Upper, ISCG05 Lower |
| Maximum Chainring Size | 36t Single Ring |
| Minimum Chainring Size | 30T |
| Derailleur Hanger | SRAM Universal Derailleur Hanger |
| Rear Wheel Spacing | 157mm x 12mm |
| Brake Mount Type | Post Mount 180mm |
| Maximum Rear Rotor Size | 203mm |
